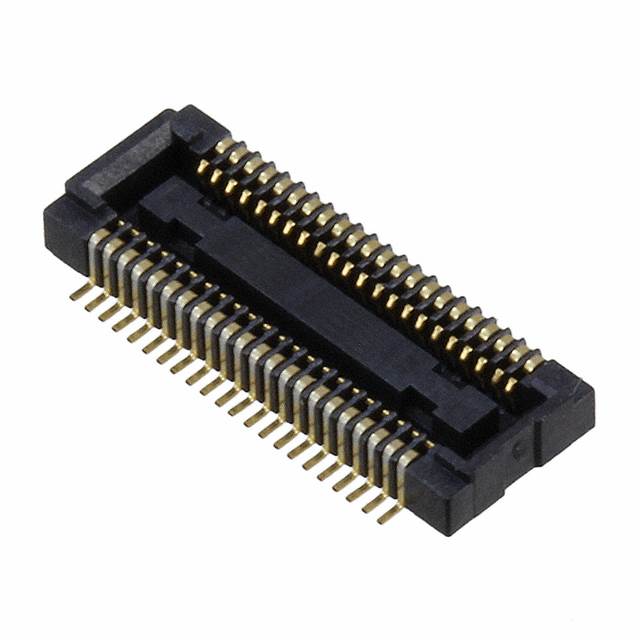

AXK744147G

Obsolete

Panasonic Electric Works

CONN SOCKET 44POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 44POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK744147G

Connector Type	Center Strip, Socket, Outer Edge Contacts
Contact Finish	Gold
Height Above Board	0.059 in
Height Above Board	1.5 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	44
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Contact Finish	Number of Rows	Height Above Board	Height Above Board
Panasonic Electric Works AXK744147G	1.5 mm	44	0.016 in	0.4 mm	Center Strip Outer Edge Contacts Socket	Surface Mount	Gold	2	0.059 in	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44 Position Connector Socket, Center Strip, Outer Edge Contacts Surface Mount Gold
