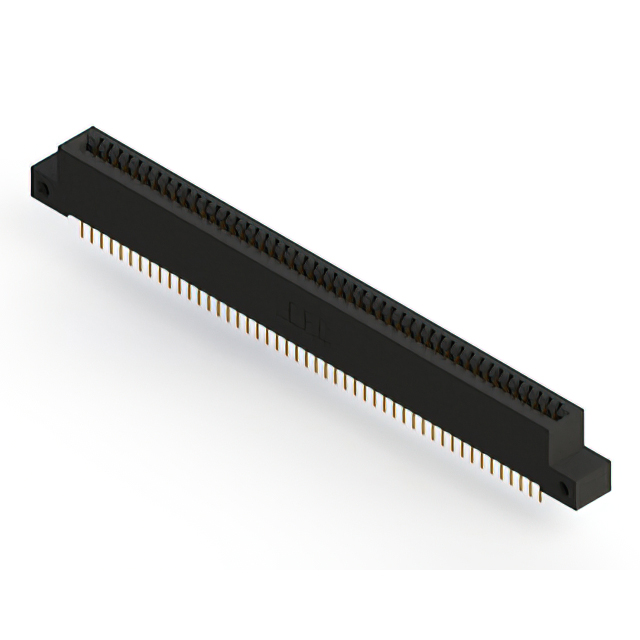

392-096-524-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 96POS 0.100

392-096-524-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 96POS 0.100

Description Specifications Series Pricing CAD Documents

Description

General part information

392-096 Series

96 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	392-096-524-212

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Side Opening, Unthreaded, Flush Mount
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	96, 48
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

392-096 Series

Part	Read Out	Number of Positions	Card Thickness (Min)	Card Thickness (Max)	Termination	Color	Number of Rows	Operating Temperature (Min)	Operating Temperature (Max)	Flange Feature Diameter	Flange Feature	Card Type	Contact Type	Contact Finish Thickness	Contact Material	Pitch	Gender	Contact Finish	Mounting Type	Termination Rows	Material - Insulation	Features
EDAC Inc. 392-096-523-202	Dual	48 96	0.054 in	0.07 in	Solder	Black	2	-40 °C	105 °C	0.128 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Cantilever	10 Ąin	Copper Alloy	0.1 in	Female	Gold	Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 392-096-559-202	Dual	48 96	0.054 in	0.07 in	Solder Wire Wrap	Black	2	-40 °C	105 °C	0.128 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Cantilever	10 Ąin	Copper Alloy	0.1 in	Female	Gold	Right Angle Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 392-096-555-202	Dual	48 96	0.054 in	0.07 in	Solder Eyelet(s)	Black	2	-40 °C	105 °C	0.128 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Cantilever	10 Ąin	Copper Alloy	0.1 in	Female	Gold	Board Edge Straddle Mount	2 rows	Polyester Thermoplastic	Card Extender
EDAC Inc. 392-096-520-208	Dual	48 96	0.054 in	0.07 in	Solder	Black	2	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Cantilever	10 Ąin	Copper Alloy	0.1 in	Female	Gold	Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 392-096-541-207	Dual	48 96	0.054 in	0.07 in	Wire Wrap	Black	2	-40 °C	105 °C		Flush Mount M3 Threaded Insert Top Opening	Dual Edge Non Specified	Cantilever	10 Ąin	Copper Alloy	0.1 in	Female	Gold	Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 392-096-524-212	Dual	48 96	0.054 in	0.07 in	Solder	Black	2	-40 °C	105 °C	0.128 in	Flush Mount Side Opening Unthreaded	Dual Edge Non Specified	Cantilever	10 Ąin	Copper Alloy	0.1 in	Female	Gold	Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 392-096-524-202	Dual	48 96	0.054 in	0.07 in	Solder	Black	2	-40 °C	105 °C	0.128 in	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	Cantilever	10 Ąin	Copper Alloy	0.1 in	Female	Gold	Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 392-096-559-201	Dual	48 96	0.054 in	0.07 in	Solder Wire Wrap	Black	2	-40 °C	105 °C			Dual Edge Non Specified	Cantilever	10 Ąin	Copper Alloy	0.1 in	Female	Gold	Right Angle Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 392-096-520-201	Dual	48 96	0.054 in	0.07 in	Solder	Black	2	-40 °C	105 °C			Dual Edge Non Specified	Cantilever	10 Ąin	Copper Alloy	0.1 in	Female	Gold	Through Hole	2 rows	Polyester Thermoplastic
EDAC Inc. 392-096-559-208	Dual	48 96	0.054 in	0.07 in	Solder Wire Wrap	Black	2	-40 °C	105 °C		4-40 Flush Mount Threaded Insert Top Opening	Dual Edge Non Specified	Cantilever	10 Ąin	Copper Alloy	0.1 in	Female	Gold	Right Angle Through Hole	2 rows	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

392-096-524-212 | Datasheet
