R143626000

Active

Radiall USA, Inc.

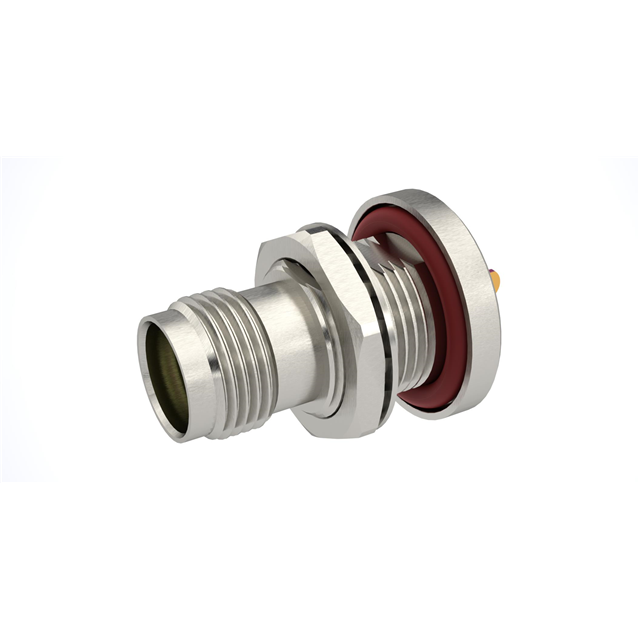

TNC / BULKHEAD HERMETIC JACK REC

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / BULKHEAD HERMETIC JACK REC

Technical Specifications

Parameters and characteristics for this part

Specification	R143626000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper, Nickel Steel
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Eyelet
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Number of Ports	Impedance	Connector Style	Contact Termination	Housing Color	Center Contact Plating	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Dielectric Material	Connector Type	Shield Termination	Frequency - Max [Max]	Body Finish	Body Material	Voltage Rating	Mating Cycles
Radiall USA, Inc. R143626000	1	50 Ohms	TNC	Solder Eyelet	Silver	Gold	Beryllium Copper Nickel Steel	-65 ░C	100 °C	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Solder	11 GHz	Nickel	Brass	500 V	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 128.11

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Eyelet

Technical documentation and resources

No documents available
