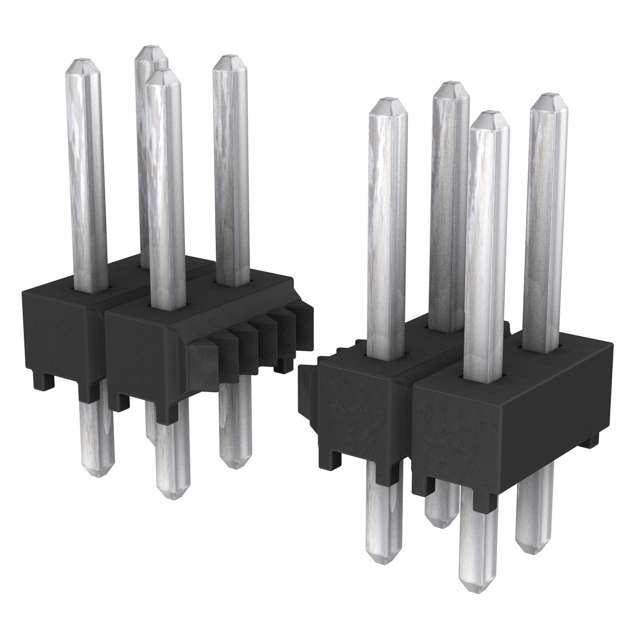

TSW-138-23-T-D

Active

Samtec Inc.

CONN HEADER VERT 76POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet HTSW, TSW Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-138-23-T-D

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	76
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.3 mm
Overall Contact Length	0.445 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSW-138 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Insulation Material	Material Flammability Rating	Contact Material	Overall Contact Length	Overall Contact Length	Shrouding	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Post	Contact Type	Insulation Color	Connector Type	Number of Positions Loaded	Mounting Type	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Shape	Number of Rows	Style	Termination	Pitch - Mating	Pitch - Mating	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Insulation Height [custom]	Insulation Height [custom]
Samtec Inc. TSW-138-17-G-S	3 µin	0.076 µm	10 çin	0.25 çm	0.11 in	2.79 mm	15.75 mm	0.62 in	Polybutylene Terephthalate (PBT)	UL94 V-0	Phosphor Bronze	0.83 in	21.08 mm	Unshrouded	Push-Pull	-55 °C	125 °C	38	Gold	Male Pin	Black	Header	All	Through Hole	Gold	0.1 in	2.54 mm	Square	1	Board to Board Cable	Solder	0.1 in	2.54 mm
Samtec Inc. TSW-138-26-S-S			30 Áin	0.76 Ám	0.126 in	3.2 mm	5.84 mm		Polybutylene Terephthalate (PBT)	UL94 V-0	Phosphor Bronze	0.456 in	11.58 mm	Unshrouded	Push-Pull	-55 °C	125 °C	38	Tin	Male Pin	Black	Header	All	Through Hole	Gold	0.1 in	2.54 mm	Square	1	Board to Board Cable	Solder	0.1 in	2.54 mm	0.23 in
Samtec Inc. TSW-138-23-S-D			30 Áin	0.76 Ám		2.92 mm	5.84 mm		Polybutylene Terephthalate (PBT)	UL94 V-0	Phosphor Bronze	0.445 "	11.3 mm	Unshrouded	Push-Pull	-55 °C	125 °C	76	Tin	Male Pin	Black	Header	All	Through Hole	Gold	0.1 in	2.54 mm	Square	2	Board to Board Cable	Solder	0.1 in	2.54 mm	0.23 in	2.54 mm	0.1 in	0.115 in
Samtec Inc. TSW-138-08-S-S-RA			30 Áin	0.76 Ám		2.29 mm	5.84 mm		Polybutylene Terephthalate (PBT)	UL94 V-0	Phosphor Bronze			Unshrouded	Push-Pull	-55 °C	125 °C	38	Tin	Male Pin	Black	Header	All	Through Hole Right Angle	Gold			Square	1	Board to Board Cable	Solder	0.1 in	2.54 mm	0.23 in			0.09 "	0.119 in	3.02 mm
Samtec Inc. TSW-138-23-T-D						2.92 mm	5.84 mm		Polybutylene Terephthalate (PBT)	UL94 V-0	Phosphor Bronze	0.445 "	11.3 mm	Unshrouded	Push-Pull	-55 °C	105 ░C	76	Tin	Male Pin	Black	Header	All	Through Hole		0.1 in	2.54 mm	Square	2	Board to Board Cable	Solder	0.1 in	2.54 mm	0.23 in	2.54 mm	0.1 in	0.115 in
Samtec Inc. TSW-138-05-L-D			10 çin	0.25 çm		3.3 mm			Polybutylene Terephthalate (PBT)	UL94 V-0	Phosphor Bronze	0.335 in	8.51 mm	Unshrouded	Push-Pull	-55 °C	125 °C	76	Tin	Male Pin	Black	Header	All	Through Hole	Gold	0.1 in	2.54 mm	Square	2	Board to Board Cable	Solder	0.1 in	2.54 mm		2.54 mm	0.1 in	0.13 in
Samtec Inc. TSW-138-14-G-S	3 µin	0.076 µm	10 çin	0.25 çm	0.11 in	2.79 mm	8.13 mm	0.32 in	Polybutylene Terephthalate (PBT)	UL94 V-0	Phosphor Bronze	0.53 in	13.46 mm	Unshrouded	Push-Pull	-55 °C	125 °C	38	Gold	Male Pin	Black	Header	All	Through Hole	Gold	0.1 in	2.54 mm	Square	1	Board to Board Cable	Solder	0.1 in	2.54 mm
Samtec Inc. TSW-138-14-L-S			10 çin	0.25 çm	0.11 in	2.79 mm	8.13 mm	0.32 in	Polybutylene Terephthalate (PBT)	UL94 V-0	Phosphor Bronze	0.53 in	13.46 mm	Unshrouded	Push-Pull	-55 °C	125 °C	38	Tin	Male Pin	Black	Header	All	Through Hole	Gold	0.1 in	2.54 mm	Square	1	Board to Board Cable	Solder	0.1 in	2.54 mm
Samtec Inc. TSW-138-11-G-S
Samtec Inc. TSW-138-14-G-T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.31
		10	$ 3.91
		100	$ 3.44
		500	$ 2.93
		1000	$ 2.50

Description

General part information

TSW-138 Series

Connector Header Through Hole 76 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

HTSW, TSW Series Datasheet
