SE710F,GM

Active

Serpac

CASE PLAS GM 19.750"L X 15.530"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SE710F,GM

Active

Serpac

CASE PLAS GM 19.750"L X 15.530"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SE710F,GM

Area (L x W)	1981 cm²
Area (L x W)	307 in²
Color	Gun Metal
Container Type	Case
Design	Hinged Lid, Equipment Case
Features	Watertight/Airtight, Foam Insert
Height [z]	137.49 mm
Height [z]	5.413 in
Material	Plastic, Polypropylene
Material Flammability Rating	UL-HB75
Size / Dimension [x]	19.75 in
Size / Dimension [x]	501.65 mm
Size / Dimension [y]	15.53 in
Size / Dimension [y]	394.46 mm
Weight	3.1 kg
Weight	6.8 lbs

SE710 Series

Part	Color	Height [z]	Height [z]	Material	Design	Area (L x W)	Area (L x W)	Features	Container Type	Material Flammability Rating	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Weight	Weight
Serpac SE710F,YL	Yellow	137.49 mm	5.413 in	Plastic Polypropylene	Equipment Case Hinged Lid	1981 cm²	307 in²	Foam Insert Watertight/Airtight	Case	UL-HB75	15.53 in	394.46 mm	19.75 in	501.65 mm	3.1 kg	6.8 lbs
Serpac SE710CC,BK	Black	137.49 mm	5.413 in	Plastic Polypropylene	Equipment Case Hinged Lid	1981 cm²	307 in²	Handles	Case	UL-HB75	15.53 in	394.46 mm	19.75 in	501.65 mm	4.2 kg	9.2 lbs
Serpac SE710F,GM	Gun Metal	137.49 mm	5.413 in	Plastic Polypropylene	Equipment Case Hinged Lid	1981 cm²	307 in²	Foam Insert Watertight/Airtight	Case	UL-HB75	15.53 in	394.46 mm	19.75 in	501.65 mm	3.1 kg	6.8 lbs
Serpac SE710ML,YL	Yellow	137.49 mm	5.413 in	Plastic Polypropylene	Equipment Case Hinged Lid	1981 cm²	307 in²	Locks	Case	UL-HB75	15.53 in	394.46 mm	19.75 in	501.65 mm	2.7 kg	6 lbs
Serpac SE710PL,YL	Yellow	137.49 mm	5.413 in	Plastic Polypropylene	Equipment Case Hinged Lid			Locks	Case	UL-HB75	15.53 in	394.46 mm	19.75 in	501.65 mm	2.7 kg	6 lbs
Serpac SE710FML,YL	Yellow	137.49 mm	5.413 in	Plastic Polypropylene	Equipment Case Hinged Lid	1981 cm²	307 in²	Accuform Foam Handles Locks	Case	UL-HB75	15.53 in	394.46 mm	19.75 in	501.65 mm	3.1 kg	6.8 lbs
Serpac SE710FPL,YL	Yellow	137.49 mm	5.413 in	Plastic Polypropylene	Equipment Case Hinged Lid	1981 cm²	307 in²	Accuform Foam Handles Locks	Case	UL-HB75	15.53 in	394.46 mm	19.75 in	501.65 mm	3.1 kg	6.8 lbs
Serpac SE710CC,OR		137.49 mm	5.413 in	Plastic Polypropylene	Equipment Case Hinged Lid	1981 cm²	307 in²	Handles	Case	UL-HB75	15.53 in	394.46 mm	19.75 in	501.65 mm	4.2 kg	9.2 lbs
Serpac SE710FPL,OR		137.49 mm	5.413 in	Plastic Polypropylene	Equipment Case Hinged Lid			Accuform Foam Handles Locks	Case	UL-HB75	15.53 in	394.46 mm	19.75 in	501.65 mm	3.1 kg	6.8 lbs
Serpac SE710CC,YL	Yellow	137.49 mm	5.413 in	Plastic Polypropylene	Equipment Case Hinged Lid	1981 cm²	307 in²	Handles	Case	UL-HB75	15.53 in	394.46 mm	19.75 in	501.65 mm	4.2 kg	9.2 lbs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 121.54
		10	$ 100.88
		25	$ 91.16
		50	$ 85.08
		100	$ 79.00

Description

General part information

SE710 Series

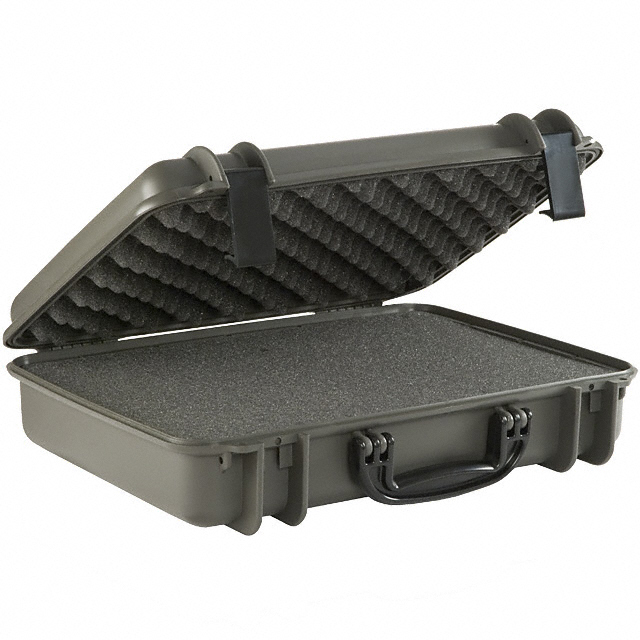

Case Plastic, Polypropylene Gun Metal Equipment Case, Hinged Lid 19.750" L x 15.530" W (501.65mm x 394.46mm) X 5.413" (137.49mm)

Documents

Technical documentation and resources
