3072F C55500

Active

Belden Inc.

CABLE 2COND 18AWG BLUE SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG BLUE SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	3072F C55500

Cable Type	Multi-Conductor
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.324 in
Jacket (Insulation) Diameter [diameter]	8.23 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Blue
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	100 %, 55 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	18 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Insulation	Shield Material	Shield Type	Shield Coverage	Wire Gauge	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Features	Jacket (Insulation) Material	Cable Type	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length
Belden Inc. 3072F C55500	-40 °C	75 ░C	Blue	Polyolefin (PO)	Aluminum Copper Tinned	Braid Foil	55 % 100 %	18 AWG	500 '	152.4 m	26 AWG	7	1.346 mm	0.053 in	Copper Tinned	Drain Wire	Poly-Vinyl Chloride (PVC)	Multi-Conductor	2	0.324 in	8.23 mm
Belden Inc. 3072F C5510000	-40 °C	75 ░C	Blue	Polyolefin (PO)	Aluminum Copper Tinned	Braid Foil	55 % 100 %	18 AWG	10000 ft		26 AWG	7	1.346 mm	0.053 in	Copper Tinned	Drain Wire	Poly-Vinyl Chloride (PVC)	Multi-Conductor	2	0.324 in	8.23 mm	3048 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 5.69

General part information

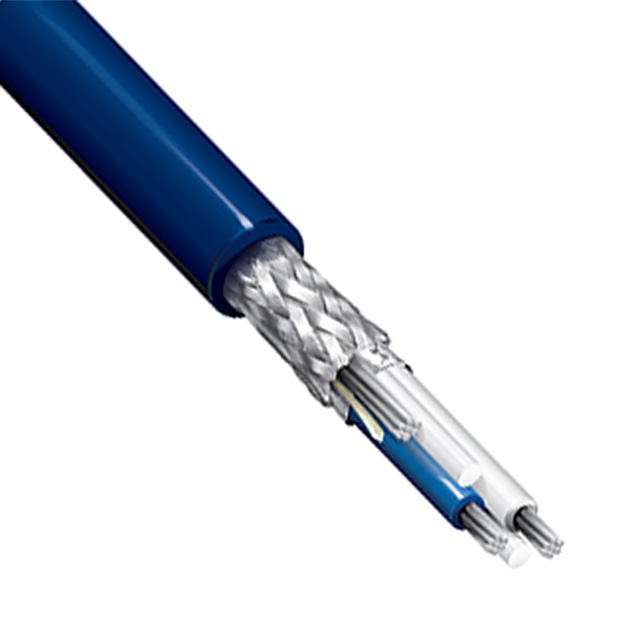

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Blue 18 AWG Foil, Braid 500.0' (152.4m)
