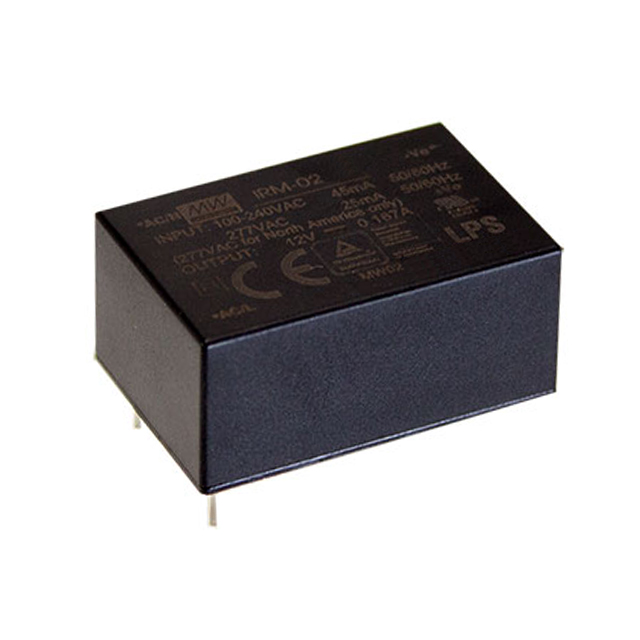

IRM-02-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IRM-02-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRM-02-12

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output (Max) [Max]	167 mA
Efficiency	74 %
Features	Universal Input
Line Regulation	0.5 %
Load Regulation	0.5 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C
Package / Case	4-DIP Module
Power (Watts)	2 W
Type	Enclosed
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Output 1	12 V

IRM-02 Series

Part	Voltage - Output 1	Load Regulation	Power (Watts)	Approval Agency	Number of Outputs	Features	Operating Temperature [Max]	Operating Temperature [Min]	Line Regulation	Mounting Type	Type	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Package / Case	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
MEAN WELL USA Inc. IRM-02-15	15 V	0.5 %	2 W	CB CE cURus TUV	1	Universal Input	85 °C	-30 °C	0.5 %	Through Hole	Enclosed	133 mA	85 VAC 120 VDC	305 VAC 430 VDC	ITE (Commercial)	4-DIP Module	75 %
MEAN WELL USA Inc. IRM-02-5S	5 V	0.5 %	2 W	CB CE cURus TUV	1	Universal Input	85 °C	-30 °C	0.5 %	Surface Mount	Enclosed	400 mA	85 VAC 120 VDC	305 VAC 430 VDC	ITE (Commercial)	24-SMD Module 14 Leads	70 %	0.63 in	1.33 "	0.87 in	22.2 mm	16 mm	33.7 mm
MEAN WELL USA Inc. IRM-02-12	12 V	0.5 %	2 W	CB CE cURus TUV	1	Universal Input	85 °C	-30 °C	0.5 %	Through Hole	Enclosed	167 mA	85 VAC 120 VDC	305 VAC 430 VDC	ITE (Commercial)	4-DIP Module	74 %
MEAN WELL USA Inc. IRM-02-24	24 V	0.5 %	2 W	CB CE cURus TUV	1	Universal Input	85 °C	-30 °C	0.5 %	Through Hole	Enclosed	83 mA	85 VAC 120 VDC	305 VAC 430 VDC	ITE (Commercial)	4-DIP Module	77 %
MEAN WELL USA Inc. IRM-02-3.3	3.3 V	0.5 %	2 W	CB CE cURus TUV	1	Universal Input	85 °C	-30 °C	0.5 %	Through Hole	Enclosed	600 mA	85 VAC 120 VDC	305 VAC 430 VDC	ITE (Commercial)	4-DIP Module	66 %
MEAN WELL USA Inc. IRM-02-15S	15 V	0.5 %	2 W	CB CE cURus TUV	1	Universal Input	85 °C	-30 °C	0.5 %	Surface Mount	Enclosed	133 mA	85 VAC 120 VDC	305 VAC 430 VDC	ITE (Commercial)	24-SMD Module 14 Leads	75 %	0.63 in	1.33 "	0.87 in	22.2 mm	16 mm	33.7 mm
MEAN WELL USA Inc. IRM-02-24S	24 V	0.5 %	2 W	CB CE cURus TUV	1	Universal Input	85 °C	-30 °C	0.5 %	Surface Mount	Enclosed	83 mA	85 VAC 120 VDC	305 VAC 430 VDC	ITE (Commercial)	24-SMD Module 14 Leads	77 %	0.63 in	1.33 "	0.87 in	22.2 mm	16 mm	33.7 mm
MEAN WELL USA Inc. IRM-02-5	5 V	0.5 %	2 W	CB CE cURus TUV	1	Universal Input	85 °C	-30 °C	0.5 %	Through Hole	Enclosed	400 mA	85 VAC 120 VDC	305 VAC 430 VDC	ITE (Commercial)	4-DIP Module	70 %
MEAN WELL USA Inc. IRM-02-12S	12 V	0.5 %	2 W	CB CE cURus TUV	1	Universal Input	85 °C	-30 °C	0.5 %	Surface Mount	Enclosed	167 mA	85 VAC 120 VDC	305 VAC 430 VDC	ITE (Commercial)	24-SMD Module 14 Leads	74 %	0.63 in	1.33 "	0.87 in	22.2 mm	16 mm	33.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.10
		5	$ 4.90
		10	$ 4.70
		25	$ 4.50

Description

General part information

IRM-02 Series

Enclosed AC DC Converters 1 Output 12V 167mA 85 ~ 305 VAC, 120 ~ 430 VDC Input
