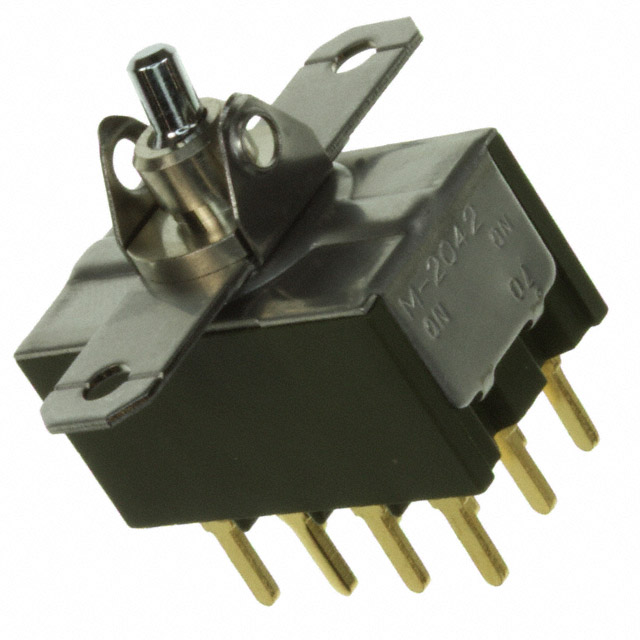

M2042TNG03

Obsolete

NKK Switches

SWITCH ROCKER 4PDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER 4PDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Marking	Voltage Rating - DC	Mounting Type	Termination Style	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Electrical Life	Approval Agency	Switch Function	Features	Current Rating (Amps)	Actuator Type	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
NKK Switches M2042TNG03	Varies by Cap	28 V	Flange Panel Mount	PC Pin	4PDT	-30 ░C	85 °C	28 V	50000 Cycles	CSA UL	On-On	Epoxy Sealed Terminals	0.4 VA	Actuator Arm Cap Required
NKK Switches M2042TNW01-GA	No Marking	30 V	Flange Panel Mount	Solder Lug	4PDT	-30 ░C	85 °C	125 V	25000 Steps	CSA UL	On-On	Epoxy Sealed Terminals	4 A 6 A	Paddle	Black	12.4 mm	12.7 mm
NKK Switches M2042TNW01	Varies by Cap	30 V	Flange Panel Mount	Solder Lug	4PDT	-30 ░C	85 °C	125 V	25000 Steps	CSA UL	On-On	Epoxy Sealed Terminals	4 A 6 A	Actuator Arm Cap Required
NKK Switches M2042TNW01-DC	No Marking	30 V	Flange Panel Mount	Solder Lug	4PDT	-30 ░C	85 °C	125 V	25000 Steps	CSA UL	On-On	Epoxy Sealed Terminals	4 A 6 A	Concave (Standard V)	Red	10.1 mm	17.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch 4PDT 0.4VA (AC/DC) 28 V Panel Mount, Flange

Technical documentation and resources
