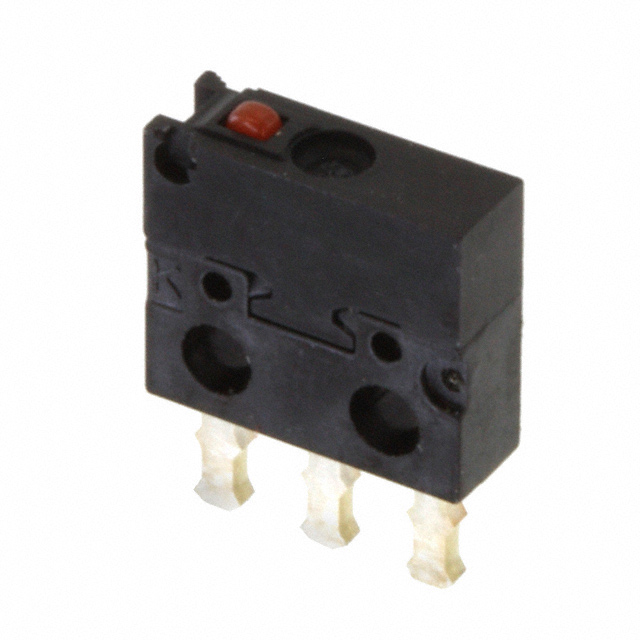

AV400461

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Electrical Life	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Overtravel	Overtravel	Operating Force	Voltage Rating - DC	Differential Travel	Differential Travel	Switch Function	Pretravel	Pretravel	Operating Position	Operating Position	Mechanical Life	Mounting Type
Panasonic Electric Works AV400461	SPDT	200000 Cycles	100 mA	-25 °C	80 C	Solder Lug	Round (Pin Plunger)	0.004 in	0.1 mm	100 gf	30 V	0.1 mm	0.004 in	On-Mom	0.012 in	0.3 mm	5.4 mm	0.213 in	300000 Cycles	Chassis Mount
Panasonic Electric Works AV4004	SPDT	20000 Steps	500 mA	-25 °C	80 C	Solder Lug	Round (Pin Plunger)	0.004 in	0.1 mm	100 gf	30 V	0.1 mm	0.004 in	On-Mom	0.012 in	0.3 mm	5.4 mm	0.213 in	300000 Cycles	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
