CGH40 Series

Part	Power - Output	Frequency Range 1 (Max)	Frequency Range 1 (Min)	Gain	Package Name	Package Length	Package Width	Package / Case	Current - Test	Voltage - Rated	Voltage - Test	Technology	Frequency (Max)	Frequency (Min)	Current Rating	Supplier Device Package

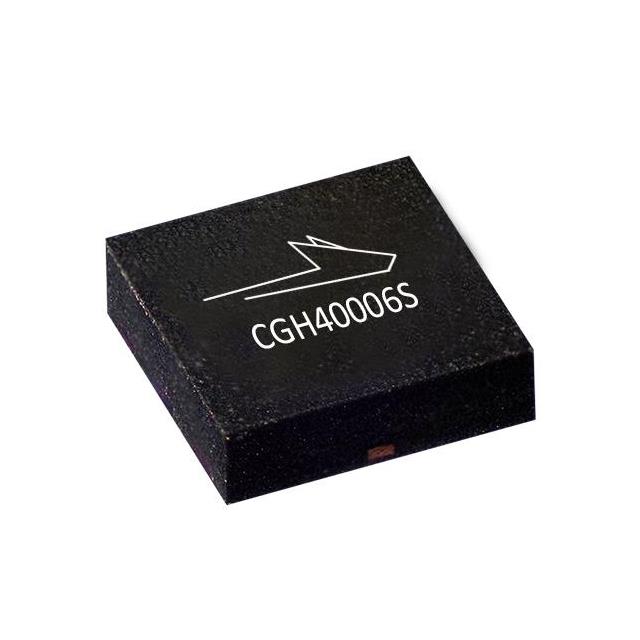

MACOM Technology Solutions CGH40006S	8 W	6 GHz	0 Hz	12 dB	6-QFN-EP	3 mm	3 mm	6-VDFN Exposed Pad	100 mA	84 V	28 V	HEMT
MACOM Technology Solutions CGH40035F	45 W			14 dB	440193			440193	500 mA	84 V	28 V	HEMT	4 GHz	0 Hz	10.5 A
MACOM Technology Solutions CGH40120F	120 W			19 dB	440193			440193	1 A	84 V	28 V	HEMT	4 GHz	0 Hz	28 A
MACOM Technology Solutions CGH40180PP	220 W			19 dB	440199			440199	2 A	84 V	28 V	HEMT	2.5 GHz	0 Hz	56 A	440199
MACOM Technology Solutions CGH40010F	12.5 W	6 GHz	0 Hz	14.5 dB	440166			440166	200 mA	84 V	28 V	HEMT			3.5 A
MACOM Technology Solutions CGH40045F	55 W			14 dB	440193			440193	400 mA	84 V	28 V	HEMT	4 GHz	0 Hz	14 A
MACOM Technology Solutions CGH40090PP	100 W			12.5 dB	440199			440199	1 A	84 V	28 V	HEMT	4 GHz	0 Hz	28 A	440199
MACOM Technology Solutions CGH40006P	8 W	6 GHz	0 Hz	13 dB	440109			440109	100 mA	84 V	28 V	HEMT			3.5 A	440109
MACOM Technology Solutions CGH40025F	30 W	6 GHz	0 Hz	13 dB	440166			440166	250 mA	84 V	28 V	HEMT			7 A
