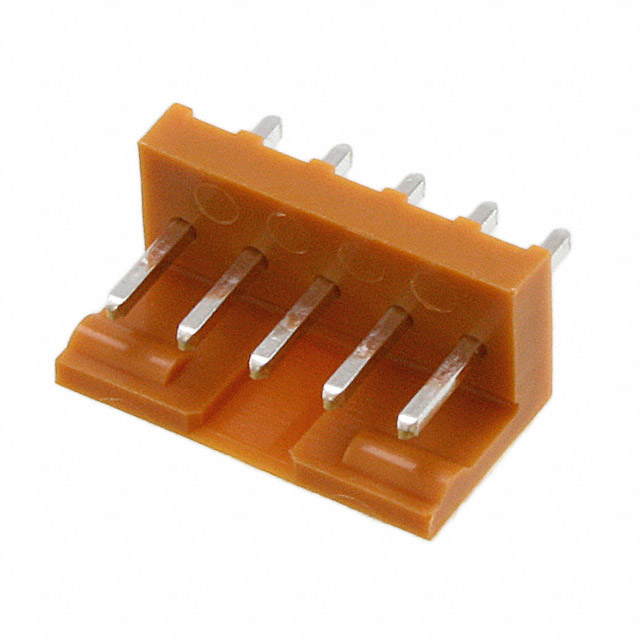

IL-G-5P-S3T2-SA
ActiveJAE Electronics
CONN HEADER VERT 5POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IL-G-5P-S3T2-SA
ActiveJAE Electronics
CONN HEADER VERT 5POS 2.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-G-5P-S3T2-SA |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 4 mm |
| Contact Length - Mating | 0.157 in |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Friction Lock |
| Insulation Color | Brown |
| Insulation Height | 0.28 in |
| Insulation Height | 7.1 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mated Stacking Heights | 10 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 0.378 in |
| Overall Contact Length | 9.6 mm |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 1 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
IL-G-5P Series
| Part | Mated Stacking Heights | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Mounting Type | Insulation Height | Insulation Height | Insulation Material | Termination | Contact Type | Fastening Type | Contact Shape | Contact Material | Connector Type | Shrouding | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Rows | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Contact Length - Mating | Contact Length - Mating | Insulation Color | Style | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 10 mm | 85 °C | -40 °C | UL94 V-0 | All | 0.378 in | 9.6 mm | Through Hole | 0.28 in | 7.1 mm | Polyamide (PA66) Nylon 6/6 | Solder | Male Pin | Friction Lock | Square | Brass | Header | Shrouded - 1 Wall | Tin | 2.5 mm | 0.098 in | 1 | 3 A | 3.5 mm | 0.138 in | 4 mm | 0.157 in | Brown | Board to Cable/Wire | |||
JAE Electronics | 85 °C | -40 °C | UL94 V-0 | All | Through Hole Right Angle | 0.236 in | 6 mm | Polyamide (PA66) Nylon 6/6 | Solder | Male Pin | Friction Lock | Square | Brass | Header | Shrouded - 1 Wall | 2.5 mm | 0.098 in | 1 | 3 A | 3.5 mm | 0.138 in | 4 mm | 0.157 in | Brown | Board to Cable/Wire | Gold | 0.099 µm | 3.9 µin | ||||
JAE Electronics | 85 °C | -40 °C | UL94 V-0 | All | Through Hole Right Angle | 0.236 in | 6 mm | Polyamide (PA66) Nylon 6/6 | Solder | Male Pin | Friction Lock | Square | Brass | Header | Shrouded - 1 Wall | Tin | 2.5 mm | 0.098 in | 1 | 3 A | 3.5 mm | 0.138 in | 4 mm | 0.157 in | Brown | Board to Cable/Wire | ||||||
JAE Electronics | 10 mm | 85 °C | -40 °C | UL94 V-0 | Through Hole | Polyamide (PA66) Nylon 6/6 | Friction Lock | Square | Brass | Header | Shrouded - 1 Wall | 2.5 mm | 0.098 in | 1 | 3 A | Board to Board Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.59 | |
| 10 | $ 0.45 | |||
| 100 | $ 0.34 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.27 | |||
| 5000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
Description
General part information
IL-G-5P Series
Connector Header Through Hole 5 position 0.098" (2.50mm)
