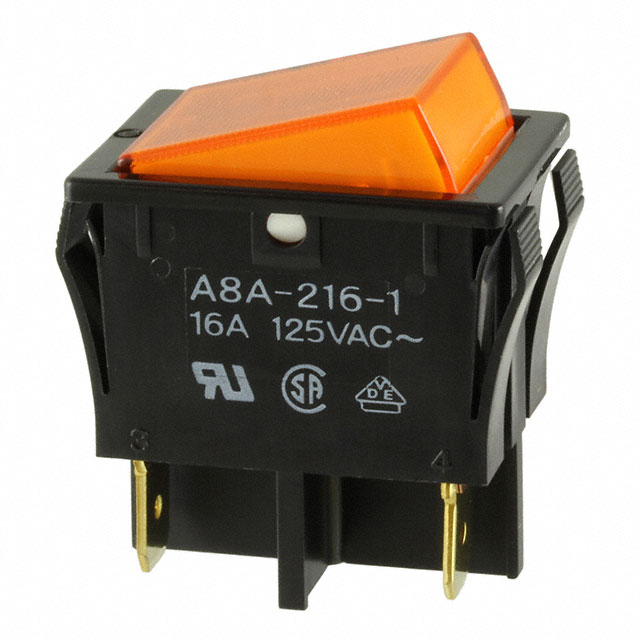

A8A-216-1

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER DPST 16A 125V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

Part	Approval Agency	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Switch Function	Illumination Type, Color	Electrical Life	Color - Actuator/Cap	Actuator Type	Mechanical Life	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Ingress Protection	Actuator Marking	Current Rating (Amps)	Mounting Type
Omron Electronics Inc-EMC Div A8A-216-1	CSA, EN, UL	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	On-Off	Neon, Orange	20000 Steps	Orange	Flat - Illuminated	40000 Cycles	125 V	50 °C	-25 °C	DPST	IP00	No Marking	16 A	Panel Mount, Snap-In
Omron Electronics Inc-EMC Div A8A-216-1G	CSA, EN, UL	Quick Connect - 0.250" (6.3mm)	30 mm	22 mm	On-Off	Neon, Orange	20000 Steps	Orange	Flat - Illuminated	40000 Cycles	125 V	50 °C	-25 °C	DPST	IP00	No Marking	16 A	Panel Mount, Snap-In
