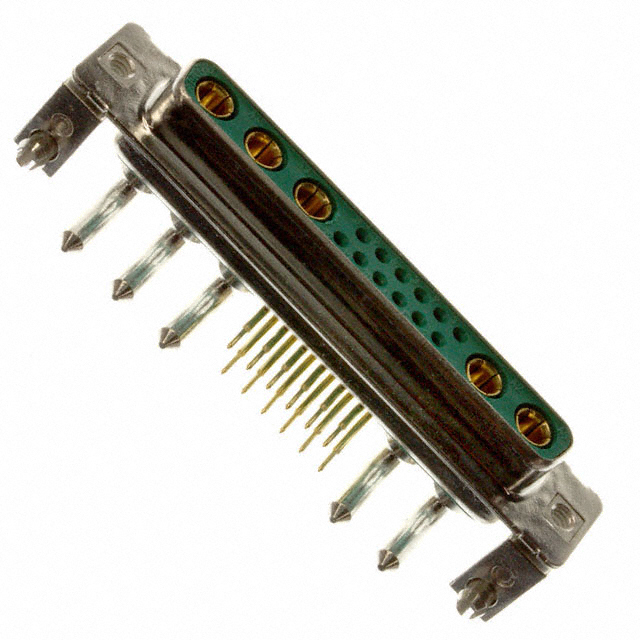

3017W5SCT56N40X

Active

Amphenol CONEC

CONN D-SUB RCPT 17POS R/A SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB RCPT 17POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	3017W5SCT56N40X

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Green
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions [custom]	5
Number of Positions [custom]	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C), 17W5
Termination	Solder

Part	Connector Type	Connector Style	Number of Rows	Dielectric Material	Flange Feature	Termination	Features	Mounting Type	Shell Size, Connector Layout	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Current Rating (Amps)	Color	Contact Finish Thickness	Contact Finish Thickness	Backset Spacing	Backset Spacing	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Voltage Rating	Wire Gauge	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Amphenol CONEC 3017W5SAR72A30X	Receptacle Female Sockets
Amphenol CONEC 3017W5SCT56N40X	Receptacle Female Sockets	Combo D-Sub	2	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (4-40)	Solder	Board Lock Mounting Brackets	Board Edge Right Angle Through Hole	17W5 4 (DC C)	UL94 V-0	Signal and Power	-55 °C	125 °C	Copper Alloy	5 A 20 A	Green	0.76 Ám	30 Áin	0.283 in	7.2 mm	5	12	Gold
Amphenol CONEC 3017W5SAR71AA0X	Receptacle Female Sockets
Amphenol CONEC 3017W5SAT75N40X	Receptacle Female Sockets	Combo D-Sub	2	Polybutylene Terephthalate (PBT) Glass Filled		Solder	Board Lock Mounting Brackets	Through Hole Right Angle	17W5 4 (DC C)	UL94 V-0	Signal and Power	-55 °C	125 °C	Copper Alloy	40 A	Green					5	12	Gold	250 VDC
Amphenol CONEC 3017W5SCM99A10X	Receptacle Female Sockets	Combo D-Sub	2	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)			Free Hanging (In-Line)	17W5 4 (DC C)	UL94 V-0				Copper Alloy		Green	0.76 Ám	30 Áin					Gold		20 AWG	17	5	12
Amphenol CONEC 3017W5SAR71E20X	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 (12 + 5 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
