1-967627-5
ActiveTE Connectivity AMP Connectors

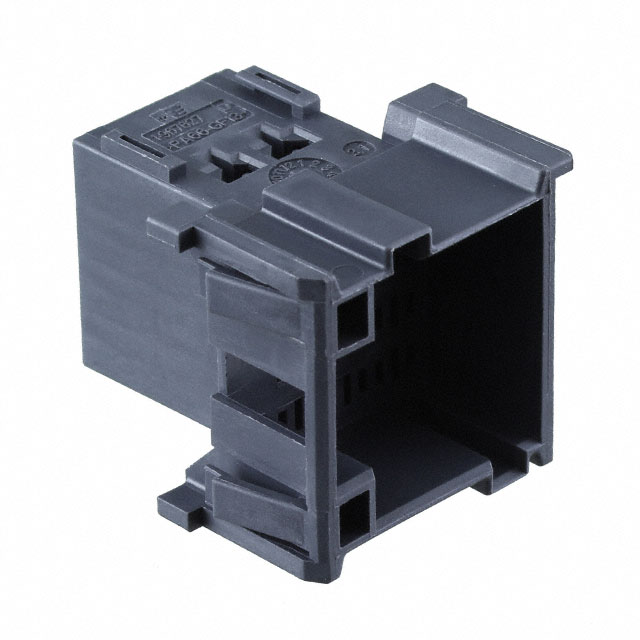

CONN PLUG HSG 12POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
1-967627-5
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 12POS 5.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967627-5 |
|---|---|
| Color | Gray |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Row Spacing | 5.51 mm |
| Row Spacing [x] | 0.217 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.02 | |
| 10 | $ 1.72 | |||
| 25 | $ 1.61 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.46 | |||
| 250 | $ 1.37 | |||
| 950 | $ 1.25 | |||
| 1900 | $ 1.19 | |||
| 2850 | $ 1.15 | |||
967627 Series
CONN PLUG HSG 12POS 5.00MM
| Part | Number of Rows | Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Termination | Mounting Type | Note | Pitch [x] | Pitch [x] | Connector Type | Insulation Material | Row Spacing [x] | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967627-5 | 3 | Tab | 12 | -40 °C | 120 °C | Gray | Crimp | Free Hanging (In-Line) | Contacts Not Included | 5 mm | 0.197 in | Plug | Polyamide (PA66), Nylon 6/6, Glass Filled | 0.217 in | 5.51 mm |
Description
General part information
967627 Series
12 Rectangular Connectors - Housings Plug Gray 0.197" (5.00mm)
