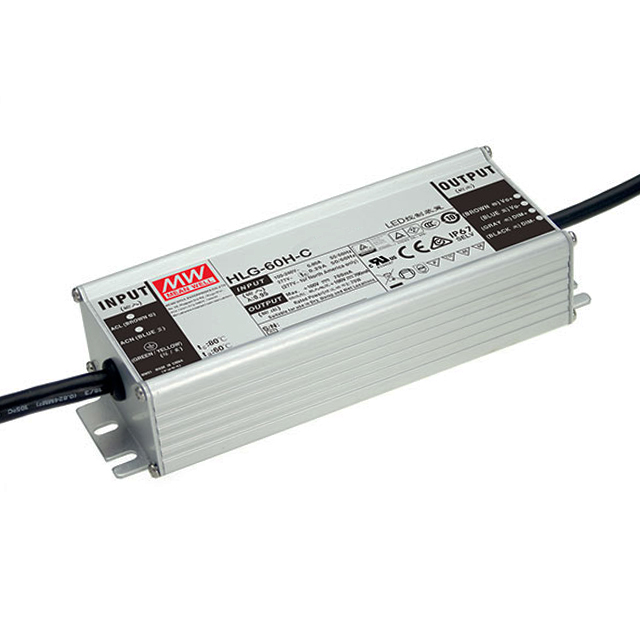

HLG-60H-C700A

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 50-100V 700MA

Description Specifications Series Pricing CAD Documents

Description

General part information

HLG-60H Series

700mA 50 ~ 100V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-60H-C700A

Approval Agency	cURus, CCC, CE, PSE, TUV, RCM, CB
Current - Output (Max)	700 mA
Efficiency	90.5 %
Features	OCP, SCP, OTP, OVP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	70 W
Ratings	IP65
Size / Dimension Height	1.42 in
Size / Dimension Length	5.8 in
Size / Dimension Width	2.42 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max)	305 V
Voltage - Input (Min)	90 VAC
Voltage - Isolation	3750 VDC
Voltage - Output (Max)	100 V
Voltage - Output (Min)	50 V

HLG-60H Series

Part	Termination Style	Ratings	Dimming	Voltage - Isolation	Number of Outputs	Voltage - Output (Max)	Voltage - Output (Min)	Current - Output (Max)	Voltage - Input (Min)	Power (Watts)	Approval Agency	Features	Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Max)	Efficiency	Topology	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Mounting Type	Voltage - Output
MEAN WELL USA Inc. HLG-60H-36B	Wire Leads	IP67	Analog PWM	3750 VDC	1	36 V	21.6 V	1.7 A	90 VAC	61 W	CB CCC CE cURus PSE RCM TUV UR	OCP OTP OVP SCP	Constant Current Voltage	80 °C	-40 °C	305 V	90 %	AC DC Converter	1.45 in	5.8 in	2.42 in	Chassis Mount
MEAN WELL USA Inc. HLG-60H-C700A	Wire Leads	IP65		3750 VDC	1	100 V	50 V	700 mA	90 VAC	70 W	CB CCC CE cURus PSE RCM TUV	OCP OTP OVP SCP	Constant Current	80 °C	-40 °C	305 V	90.5 %	AC DC Converter	1.42 in	5.8 in	2.42 in	Chassis Mount
MEAN WELL USA Inc. HLG-60H-30	Wire Leads	IP67		3750 VDC	1	30 V	18 V	2 A	90 VAC	60 W	CB CCC CE cURus PSE RCM TUV UR	OCP OTP OVP SCP	Constant Current Voltage	80 °C	-40 °C	305 V	90 %	AC DC Converter	1.45 in	5.8 in	2.42 in	Chassis Mount
MEAN WELL USA Inc. HLG-60H-15AB	Wire Leads	IP65	Analog PWM	3750 VDC	1			4 A	90 VAC	60 W	CB CCC CE cURus EAC KC PSE RCM TUV	OCP OTP OVP SCP	Constant Current Voltage	80 °C	-40 °C	305 V	87.5 %	AC DC Converter	1.45 in	5.8 in	2.42 in	Chassis Mount	15 V
MEAN WELL USA Inc. HLG-60H-C350A	Wire Leads	IP65		3750 VDC	1	200 V	100 V	350 mA	90 VAC	70 W	CB CCC CE cURus PSE RCM TUV	OCP OTP OVP SCP	Constant Current	80 °C	-40 °C	305 V	91 %	AC DC Converter	1.42 in	5.8 in	2.42 in	Chassis Mount
MEAN WELL USA Inc. HLG-60H-36AB	Wire Leads	IP65	Analog PWM	3750 VDC	1			1.7 A	90 VAC	61 W	CB CCC CE cURus EAC KC PSE RCM TUV	OCP OTP OVP SCP	Constant Current Voltage	80 °C	-40 °C	305 V	90 %	AC DC Converter	1.45 in	5.8 in	2.42 in	Chassis Mount	36 V
MEAN WELL USA Inc. HLG-60H-42A	Wire Leads	IP65		3750 VDC	1	46 V	40 VDC	1.45 A	90 VAC	61 W	CB CCC CE cURus PSE RCM TUV UR	OCP OTP OVP SCP	Constant Current Voltage	80 °C	-40 °C	305 V	90 %	AC DC Converter	1.45 in	5.8 in	2.42 in	Chassis Mount
MEAN WELL USA Inc. HLG-60H-54A	Wire Leads	IP65		3750 VDC	1	58 V	49 V	1.15 A	90 VAC	62 W	CB CCC CE cURus PSE RCM TUV UR	OCP OTP OVP SCP	Constant Current Voltage	80 °C	-40 °C	305 V	90.5 %	AC DC Converter	1.45 in	5.8 in	2.42 in	Chassis Mount
MEAN WELL USA Inc. HLG-60H-54AB	Wire Leads	IP65		3750 VDC	1			1.15 A	90 VAC	62 W	CB CCC CE cURus EAC KC PSE RCM TUV	OCP OTP OVP SCP	Constant Current Voltage	80 °C	-40 °C	305 V	90.5 %	AC DC Converter	1.45 in	5.8 in	2.42 in	Chassis Mount	54 V
MEAN WELL USA Inc. HLG-60H-30A	Wire Leads	IP65		3750 VDC	1	33 V	27 V	2 A	90 VAC	60 W	CB CCC CE cURus PSE RCM TUV UR	OCP OTP OVP SCP	Constant Current Voltage	80 °C	-40 °C	305 V	90 %	AC DC Converter	1.45 in	5.8 in	2.42 in	Chassis Mount
