04020VA-24K-AA-00

Active

NMB TECHNOLOGIES

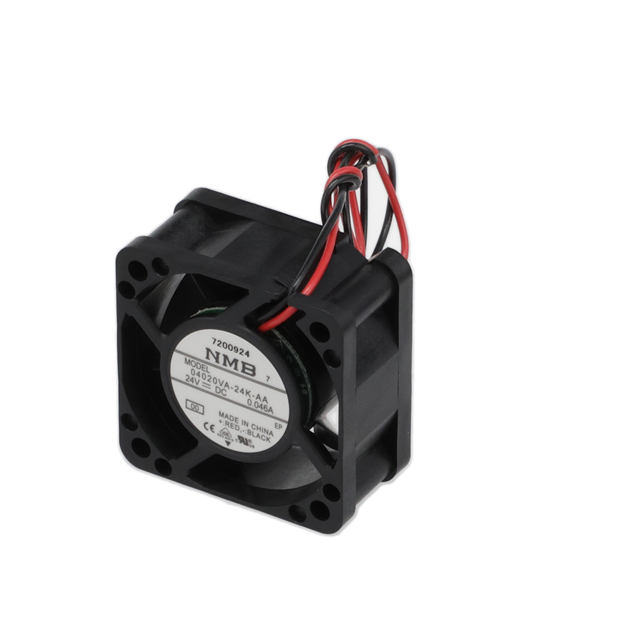

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 20 MM, BALL BEARING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

04020VA-24K-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 20 MM, BALL BEARING

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	04020VA-24K-AA-00	04020VA Series

Air Flow	-	0.347 m³/min
Air Flow	-	12.4 CFM
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.09 A
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart	Auto Restart, Speed Sensor (Tach), Locked Rotor Sensor
Ingress Protection	-	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Lifetime @ Temp.	-	40000 - 100000 Hrs
Material - Blade	-	Plastic
Material - Frame	-	Plastic
Noise	-	42 dB
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-10 °C
Operating Temperature	-	-10 °C
Power (Watts)	-	1.56 - 2.16 W
RPM	-	11000 RPM
Size / Dimension	Square	Square
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [z]	40 mm	40 mm
Static Pressure	-	142 Pa
Static Pressure	-	0.57 in H2O
Termination	2 Wire Leads	2 Wire Leads, 3 Wire Leads
Voltage - Rated	24 VDC	5 - 24 VDC
Voltage Range	-	13.2 - 26.4 VDC
Voltage Range	-	7 - 14 V
Weight	-	39.92 g
Weight	-	0.088 lb
Width [y]	20 mm	20 mm

04020VA Series

DC AXIAL FAN, 24 V, SQUARE, 40 MM, 20 MM, BALL BEARING

Part	Fan Type	Voltage - Rated	Features	Termination	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Bearing Type	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Lifetime @ Temp.	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]
NMB TECHNOLOGIES 04020VA-24K-AA-00	Tubeaxial	24 VDC	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball
NMB TECHNOLOGIES 04020VA-05Q-AT-00	Tubeaxial	5 V	Auto Restart, Speed Sensor (Tach)	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
NMB TECHNOLOGIES 04020VA-24L-AT-00	Tubeaxial	24 VDC	Auto Restart, Speed Sensor (Tach)	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
NMB TECHNOLOGIES 04020VA-05Q-AL-00	Tubeaxial	5 V	Auto Restart, Locked Rotor Sensor	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball
NMB TECHNOLOGIES 04020VA-05Q-AA-00	Tubeaxial	5 V	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball
NMB TECHNOLOGIES 04020VA-24L-AA-00	Tubeaxial	24 VDC	Auto Restart	2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
NMB TECHNOLOGIES 04020VA-12K-AA-00	Tubeaxial	12 VDC		2 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs	39.92 g	0.088 lb	13.2 VDC	7 V
NMB TECHNOLOGIES 04020VA-12L-AT-00	Tubeaxial	12 VDC	Auto Restart, Speed Sensor (Tach)	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
NMB TECHNOLOGIES 04020VA-12K-AT-00	Tubeaxial	12 VDC	Auto Restart, Speed Sensor (Tach)	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs
NMB TECHNOLOGIES 04020VA-24K-AL-00	Tubeaxial	24 VDC	Auto Restart, Locked Rotor Sensor	3 Wire Leads	20 mm	40 mm	Square	40 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	Plastic	40000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.40
Newark	Each	100	$ 11.48

Description

General part information

04020VA Series

Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 2 Wire Leads
