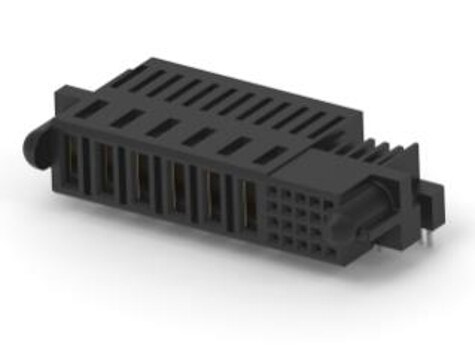

Specification	2343045-1

Color	Black
Connector Style	Multi-Beam
Connector Type	Receptacle, Blade Sockets, Female Sockets
Contact Finish	Gold
Features	Guide Pin, Board Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Power Contacts (Typical)	6
Signal Contacts (Typical)	20
Termination	Solder

2343045 Series

Part	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Color	Number of Rows	Signal Contacts (Typical)	Power Contacts (Typical)	Features	Pitch	Number of Positions	Connector Style	Number of Positions Loaded	Contact Finish	Mounting Type	Termination	Connector Type
TE Connectivity AMP Connectors 2343045-1	UL94 V-0	125 °C	-40 °C	Black	4	20	6	Board Lock Guide Pin	0.1 in	26	Multi-Beam	All	Gold	Right Angle Through Hole	Solder	Blade Sockets Female Sockets Receptacle
