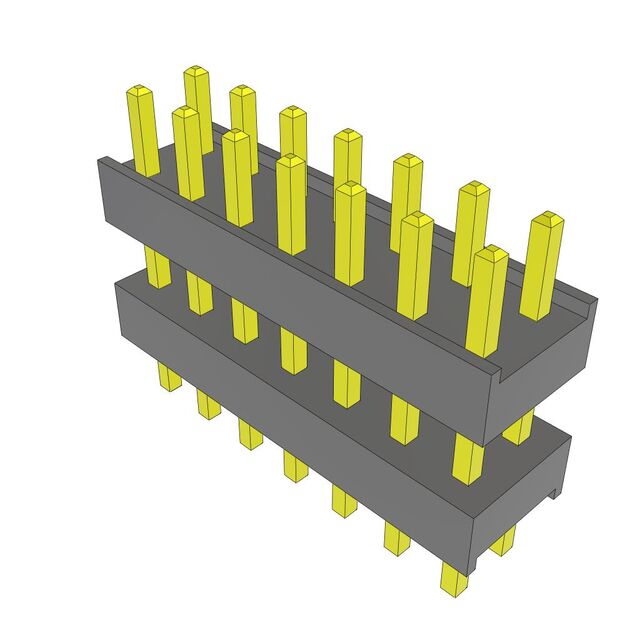

DW-07-08-T-D-310

Active

Samtec Inc.

CONN HDR 14POS 0.1 STACK T/H TIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-07-08-T-D-310

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin	0.53 in
Length - Overall Pin	13.462 mm
Length - Post (Mating) [x]	2.794 mm
Length - Post (Mating) [x]	0.11 in
Length - Stack Height [x]	0.31 in
Length - Stack Height [x]	7.874 mm
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

DW-07-08 Series

Part	Contact Finish - Post (Mating)	Color	Length - Overall Pin	Length - Overall Pin	Length - Stack Height [x]	Length - Stack Height [x]	Pitch [x]	Pitch [x]	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Positions	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Mounting Type	Length - Tail [x]	Length - Tail [x]	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DW-07-08-G-S-375	Gold	Black	0.53 in	13.462 mm	0.375 in	9.525 mm	2.54 mm	0.1 in	Solder	0.25 Ám	10 Áin	7	1	1.143 mm	0.045 in	Through Hole	0.11 in	2.794 mm
Samtec Inc. DW-07-08-F-T-200	Gold	Black	0.53 in	13.462 mm			2.54 mm	0.1 in	Solder	0.076 Ám	3 Áin	21	3	5.588 mm	0.22 in	Through Hole	0.11 in	2.794 mm	0.1 in	2.54 mm
Samtec Inc. DW-07-08-T-S-275	Tin	Black	0.53 in	13.462 mm	0.275 in	6.985 mm	2.54 mm	0.1 in	Solder			7	1	3.683 mm	0.145 in	Through Hole	0.11 in	2.794 mm
Samtec Inc. DW-07-08-S-D-295	Gold	Black	0.53 in	13.462 mm	0.295 in	7.493 mm	2.54 mm	0.1 in	Solder	0.76 µm	30 µin	14	2	3.175 mm	0.125 in	Through Hole	0.11 in	2.794 mm	0.1 in	2.54 mm
Samtec Inc. DW-07-08-T-D-310	Tin	Black	0.53 in	13.462 mm	0.31 in	7.874 mm	2.54 mm	0.1 in	Solder			14	2	2.794 mm	0.11 in	Through Hole	0.11 in	2.794 mm	0.1 in	2.54 mm
Samtec Inc. DW-07-08-T-D-215	Tin	Black	0.53 in	13.462 mm			2.54 mm	0.1 in	Solder			14	2	5.207 mm	0.205 in	Through Hole	0.11 in	2.794 mm	0.1 in	2.54 mm	5.461 mm	0.215 in
Samtec Inc. DW-07-08-T-S-250	Tin	Black	0.53 in	13.462 mm	0.25 in	6.35 mm	2.54 mm	0.1 in	Solder			7	1	4.318 mm	0.17 in	Through Hole	0.11 in	2.794 mm
Samtec Inc. DW-07-08-G-D-200	Gold	Black	0.53 in	13.462 mm			2.54 mm	0.1 in	Solder	0.25 Ám	10 Áin	14	2	5.588 mm	0.22 in	Through Hole	0.11 in	2.794 mm	0.1 in	2.54 mm
Samtec Inc. DW-07-08-G-S-265	Gold	Black	0.53 in	13.462 mm	0.265 in	6.731 mm	2.54 mm	0.1 in	Solder	0.25 Ám	10 Áin	7	1	3.937 mm	0.155 in	Through Hole	0.11 in	2.794 mm
Samtec Inc. DW-07-08-F-S-200	Gold	Black	0.53 in	13.462 mm			2.54 mm	0.1 in	Solder	0.076 Ám	3 Áin	7	1	5.588 mm	0.22 in	Through Hole	0.11 in	2.794 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.27

Description

General part information

DW-07-08 Series

14 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
