950-1-5

Active

3M (TC)

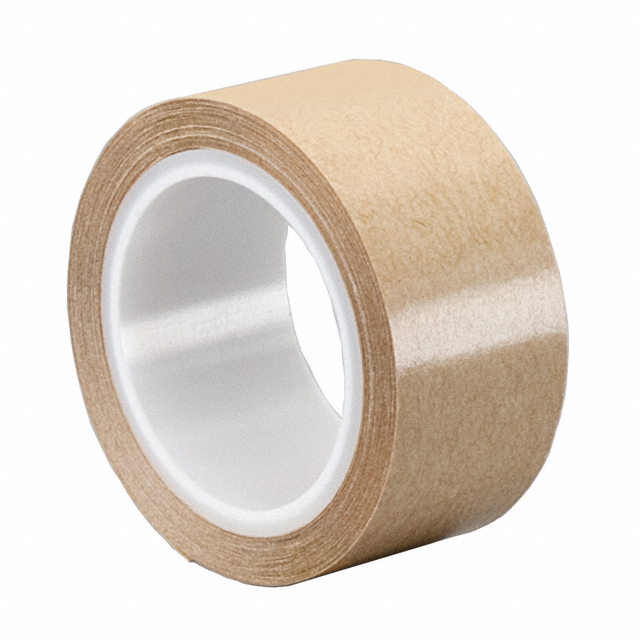

TAPE ADHSV TRNSFR CLR 1"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

950-1-5

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 1"X5YDS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	950-1-5

Adhesive	Acrylic, 300
Backing, Carrier	Liner
Color	Clear
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Adhesive Transfer
Temperature Range	82 °C
Temperature Range	180 °F
Thickness	0.127 mm
Thickness	5 mils
Thickness	0.005 in
Thickness - Adhesive	5 mils
Thickness - Adhesive	0.005 "
Thickness - Adhesive	0.127 mm
Usage	General Purpose, Splicing, Adhesion
Width [x]	25.4 mm
Width [x]	1 in

950 Series

...

Part	Adhesive	Thickness	Thickness	Thickness	Backing, Carrier	Color	Width [x]	Width [x]	Shelf Life Start	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life	Tape Type	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Length	Length	Length	Length [x]	Length [x]	Width	Width	Width	Width	Temperature Range	Temperature Range	Usage	Width [y]	Width [y]
3M (TC) 3M 950 9.25" X 9.25"-25	Acrylic 300	0.127 mm	5 mils	0.005 in	Liner	Clear	234.95 mm	9.25 in	Date of Manufacture	5 mils	0.005 "	0.127 mm	24 Months	Adhesive Transfer	70 °F	21 °C		9.25 inches	234.95 mm
3M (TC) 3M 950 0.5" X 5"-250	Acrylic 300	0.127 mm	5 mils	0.005 in	Liner	Clear			Date of Manufacture	5 mils	0.005 "	0.127 mm	24 Months	Adhesive Transfer	70 °F	21 °C				5 in	127 mm	0.5 in	12.7 mm	0.5 in
3M (TC) 3M 950 1.5" X 3"-100	Acrylic 300	0.127 mm	5 mils	0.005 in	Liner	Clear			Date of Manufacture	5 mils	0.005 "	0.127 mm	24 Months	Adhesive Transfer	70 °F	21 °C			76.2 mm	3 in			38.1 mm	1.5 "	1 1/2
3M (TC) 3M 950 3" X 7.25"-50	Acrylic 300	0.127 mm	5 mils	0.005 in	Liner	Clear	76.2 mm	3 in	Date of Manufacture	5 mils	0.005 "	0.127 mm	24 Months	Adhesive Transfer	70 °F	21 °C		7.25 in	184.15 mm
3M (TC) 950-1-5	Acrylic 300	0.127 mm	5 mils	0.005 in	Liner	Clear	25.4 mm	1 in	Date of Manufacture	5 mils	0.005 "	0.127 mm	24 Months	Adhesive Transfer	70 °F	21 °C	5 yd	15 ft	4.6 m							82 °C	180 °F	Adhesion General Purpose Splicing
3M (TC) 3M 950 7" X 60YD	Acrylic 300	0.127 mm	5 mils	0.005 in	Liner	Clear	177.8 mm	7 in	Date of Manufacture	5 mils	0.005 "	0.127 mm	24 Months	Adhesive Transfer	70 °F	21 °C	60 yds	180 ft	55 m
3M (TC) 950-2-5	Acrylic 300	0.127 mm	5 mils	0.005 in	Liner	Clear			Date of Manufacture	5 mils	0.005 "	0.127 mm	24 Months	Adhesive Transfer	70 °F	21 °C	5 yd	15 ft	4.6 m							82 °C	180 °F	Adhesion General Purpose Splicing	2 "	50.8 mm
3M (TC) 950-0.5-5	Acrylic 300	0.127 mm	5 mils	0.005 in	Liner	Clear			Date of Manufacture	5 mils	0.005 "	0.127 mm	24 Months	Adhesive Transfer	70 °F	21 °C	5 yd	15 ft	4.6 m			0.5 in	12.7 mm	0.5 in		82 °C	180 °F	Adhesion General Purpose Splicing
3M (TC) 3M 950 1.5" X 5"-100	Acrylic 300	0.127 mm	5 mils	0.005 in	Liner	Clear			Date of Manufacture	5 mils	0.005 "	0.127 mm	24 Months	Adhesive Transfer	70 °F	21 °C				5 in	127 mm		38.1 mm	1.5 "	1 1/2
3M (TC) 3M 950 CIRCLE-3.000"-100	Acrylic 300	0.127 mm	5 mils	0.005 in	Liner	Clear	76.2 mm	3 "	Date of Manufacture	5 mils	0.005 "	0.127 mm	24 Months	Adhesive Transfer	70 °F	21 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.15
		10	$ 13.81
		25	$ 12.46
		50	$ 11.55
		100	$ 10.74
		250	$ 9.78
		500	$ 9.14
		1000	$ 8.56

Description

General part information

950 Series

Adhesive Transfer Tape Acrylic, 300 Adhesive Clear 1.00" (25.40mm) X 15' (4.6m) 5 yds

Documents

Technical documentation and resources

No documents available
