71V256SA10PZG
ActiveIDT, Integrated Device Technology Inc

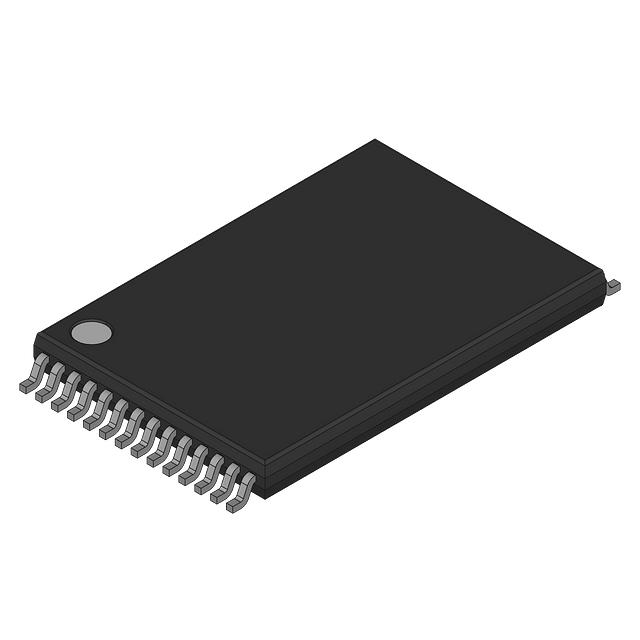

IC SRAM 256KBIT PARALLEL 28TSOP
Deep-Dive with AI
Search across all available documentation for this part.
71V256SA10PZG
ActiveIDT, Integrated Device Technology Inc
IC SRAM 256KBIT PARALLEL 28TSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 71V256SA10PZG | 71V256 Series |
|---|---|---|
| Access Time | 10 ns | 10 - 12 ns |
| Memory Format | SRAM | SRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 32K x 8 | 32K x 8 |
| Memory Size | 32 KB | 32 KB |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |
| Package / Case | 28-TSSOP | 28-BSOJ, 28-TSSOP |
| Package / Case | - | 7.62 mm |
| Package / Case | - | 0.3 in |
| Package / Case [x] | 0.465 " | 0.465 " |
| Package / Case [y] | 11.8 mm | 11.8 mm |
| Supplier Device Package | 28-TSOP | 28-SOJ, 28-TSOP |
| Technology | SRAM - Asynchronous | SRAM - Asynchronous |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
| Write Cycle Time - Word, Page | 10 ns | 10 - 12 ns |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 317 | $ 1.16 | |
71V256 Series
IC SRAM 256KBIT PARALLEL 28SOJ
| Part | Memory Format | Package / Case | Package / Case | Package / Case | Memory Interface | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Memory Size | Access Time | Write Cycle Time - Word, Page | Supplier Device Package | Memory Organization | Memory Type | Technology | Package / Case [y] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc 71V256S12YG | SRAM | 7.62 mm | 0.3 in | 28-BSOJ | Parallel | Surface Mount | 3.6 V | 3 V | 70 °C | 0 °C | 32 KB | 12 ns | 12 ns | 28-SOJ | 32K x 8 | Volatile | SRAM - Asynchronous | ||
IDT, Integrated Device Technology Inc 71V256SA10PZG | SRAM | 28-TSSOP | Parallel | Surface Mount | 3.6 V | 3 V | 70 °C | 0 °C | 32 KB | 10 ns | 10 ns | 28-TSOP | 32K x 8 | Volatile | SRAM - Asynchronous | 11.8 mm | 0.465 " | ||
IDT, Integrated Device Technology Inc 71V256SA12PZG | SRAM | 28-TSSOP | Parallel | Surface Mount | 3.6 V | 3 V | 70 °C | 0 °C | 32 KB | 12 ns | 12 ns | 28-TSOP | 32K x 8 | Volatile | SRAM - Asynchronous | 11.8 mm | 0.465 " | ||
IDT, Integrated Device Technology Inc 71V256SA12PZG8 | SRAM | 28-TSSOP | Parallel | Surface Mount | 3.6 V | 3 V | 70 °C | 0 °C | 32 KB | 12 ns | 12 ns | 28-TSOP | 32K x 8 | Volatile | SRAM - Asynchronous | 11.8 mm | 0.465 " | ||
IDT, Integrated Device Technology Inc 71V256SA12PZI | SRAM | 28-TSSOP | Parallel | Surface Mount | 3.6 V | 3 V | 85 °C | -40 °C | 32 KB | 12 ns | 12 ns | 28-TSOP | 32K x 8 | Volatile | SRAM - Asynchronous | 11.8 mm | 0.465 " |
Description
General part information
71V256 Series
SRAM - Asynchronous Memory IC 256Kbit Parallel 10 ns 28-TSOP
