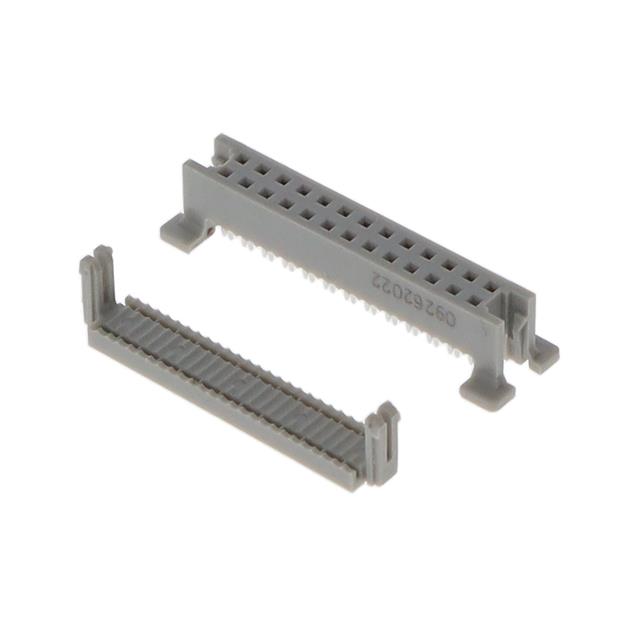

45126-000000

Active

3M (TC)

26P SKT NO CP

Search across all available documentation for this part.

Active

3M (TC)

26P SKT NO CP

Technical Specifications

Parameters and characteristics for this part

Part	Wire Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Wire Gauge	Connector Type	Mounting Type	Number of Positions	Features	Row Spacing	Row Spacing	Contact Type	Cable Termination	Contact Finish Thickness	Fastening Type	Contact Finish Thickness	Contact Finish Thickness
3M (TC) 45126-000000	Ribbon Cable	2	0.05 in	1.27 mm	Gold	30 AWG	Receptacle	Free Hanging (In-Line)	26	Feed Through	1.27 mm	0.05 in	Female Socket	IDC	Flash
3M (TC) 45126-020030	Ribbon Cable	2	0.05 in	1.27 mm	Gold	30 AWG	Receptacle	Free Hanging (In-Line)	26	Feed Through Polarizing Key	1.27 mm	0.05 in	Female Socket	IDC		Friction Lock	0.76 Ám	30 Áin
3M (TC) 45126-010000	Ribbon Cable	2	0.05 in	1.27 mm	Gold	30 AWG	Receptacle	Free Hanging (In-Line)	26	Feed Through Polarizing Key	1.27 mm	0.05 in	Female Socket	IDC	Flash
3M (TC) 45126-020000	Ribbon Cable	2	0.05 in	1.27 mm	Gold	30 AWG	Receptacle	Free Hanging (In-Line)	26	Feed Through Polarizing Key	1.27 mm	0.05 in	Female Socket	IDC	Flash	Friction Lock
3M (TC) 45126-000030	Ribbon Cable	2	0.05 in	1.27 mm	Gold	30 AWG	Receptacle	Free Hanging (In-Line)	26	Feed Through	1.27 mm	0.05 in	Female Socket	IDC			0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Rectangular Receptacle Connector IDC Gold 30 AWG
