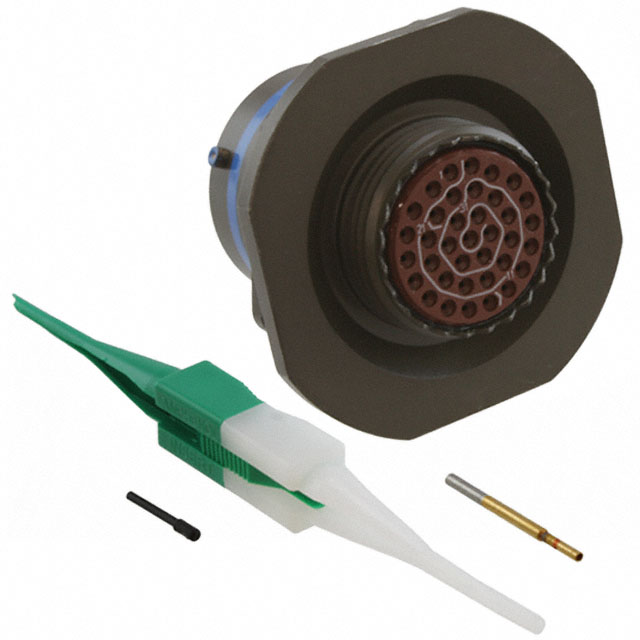

MS27468T15B35P

Active

Amphenol Aerospace Operations

CONN RCPT MALE 37POS GOLD CRIMP

MS27468T15B35P

Active

Amphenol Aerospace Operations

CONN RCPT MALE 37POS GOLD CRIMP

Description Specifications Series Pricing CAD Documents

Description

General part information

MS27468T15B Series

37 Position Circular Connector Receptacle, Male Pins Crimp

Technical Specifications

Parameters and characteristics for this part

Specification	MS27468T15B35P

Applications	Military, Aviation, Marine
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Positions	37 pos
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-65 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-38999 Series I
Shell Finish	Olive Drab Cadmium, Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert (Maximum)	35
Shell Size - Insert (Minimum)	15
Shielding	Unshielded
Termination	Crimp

MS27468T15B Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Feature	Grade	Housing Color	Contact Type	Includes Total Count	Includes	Insert Material	Ingress Protection	Note	Connector Type	Orientation	Mounting Type	Number of Positions	Shielding	Contact Size	Qualification	Type	Fastening Type	Shell Finish	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Size (MIL)	Contact Shape	Shell Material	Contact Finish - Mating	Color	Termination	Primary Material	Contact Material	Contact Finish Thickness - Mating	Applications	Shell Size - Insert Width	Shell Size - Insert Length	Current Rating	Current Rating Options	Contact Size Options
Amphenol Aerospace Operations MS27468T15B19B	-65 °C	175 °C	Bulkhead Front Side Nut	Military	Olive	Crimp	3 pcs	Connector Nut O-Ring	Thermoplastic	Environment Resistant	Contacts Not Included	Receptacle Housing	N (Normal)	Panel Mount	19	Unshielded	20	MIL-DTL-38999 Series I	For Female Sockets	Bayonet Lock	Cadmium	19	15	D	Circular	Aluminum Alloy
Amphenol Aerospace Operations MS27468T15B35P	-65 °C	175 °C	Bulkhead Front Side Nut	Military						Environment Resistant		Male Pins Receptacle	N (Normal)	Panel Mount	37 pos	Unshielded		MIL-DTL-38999 Series I		Bayonet Lock	Nickel Olive Drab Cadmium	35	15			Aluminum Alloy	Gold	Olive Drab	Crimp	Metal	Copper Alloy	50 µin	Aviation Marine Military
Amphenol Aerospace Operations MS27468T15B15S-LC	-65 °C	175 °C	Bulkhead Front Side Nut	Military	Olive Drab	Crimp				Environment Resistant	Contacts Not Included	Receptacle Housing	N (Normal)	Panel Mount	15	Unshielded	16 20	MIL-DTL-38999 Series I	For Female Sockets	Bayonet Lock		15	15		Circular	Aluminum Alloy
Amphenol Aerospace Operations MS27468T15B5P
Amphenol Aerospace Operations MS27468T15B5PA	-65 °C	175 °C	Bulkhead Front Side Nut	Military					Thermoplastic	Environment Resistant		Male Pins Receptacle	A	Panel Mount	5			MIL-DTL-38999 Series I		Bayonet Lock	Olive Drab Cadmium					Aluminum Alloy	Gold	Olive Drab	Crimp	Metal	Copper Alloy	50 µin	Aviation Communication Systems Marine Medical Military	5 mm	15 mm	13 A
Amphenol Aerospace Operations MS27468T15B97S	-65 °C	175 °C	Bulkhead Front Side Nut	Military					Thermoplastic	Environment Resistant		Female Sockets Receptacle	N (Normal)	Panel Mount	12			MIL-DTL-38999 Series I		Bayonet Lock	Olive Drab Cadmium	97	15			Aluminum Alloy	Gold	Olive Drab	Crimp	Metal	Copper Alloy	50 µin	Aviation Communication Systems Marine Medical Military				13A 7.5A
Amphenol Aerospace Operations MS27468T15B97PA	-65 °C	175 °C	Bulkhead Front Side Nut	Military					Thermoplastic	Environment Resistant		Male Pins Receptacle	A	Panel Mount	12			MIL-DTL-38999 Series I		Bayonet Lock	Olive Drab Cadmium	97	15			Aluminum Alloy	Gold	Olive Drab	Crimp	Metal	Copper Alloy	50 µin	Aviation Communication Systems Marine Medical Military				13A 7.5A
Amphenol Aerospace Operations MS27468T15B35A			Bulkhead Front Side Nut	Military	Olive Drab	Crimp				Environment Resistant		Receptacle Housing	N (Normal)	Panel Mount	37 pos	Shielded		MIL-DTL-38999 Series I	For Male Pins	Bayonet Lock	Cadmium Chromate	35	15			Aluminum Alloy				Metal								22D
Amphenol Aerospace Operations MS27468T15B19B			Bulkhead Front Side Nut	Military	Olive Drab	Crimp				Environment Resistant		Receptacle Housing	N (Normal)	Panel Mount	19	Shielded	20	MIL-DTL-38999 Series I	For Female Sockets	Bayonet Lock	Cadmium Chromate	19	15			Aluminum Alloy				Metal
Amphenol Aerospace Operations MS27468T15B35A	-65 °C	175 °C	Bulkhead Front Side Nut	Military	Olive	Crimp	3 pcs	Connector Nut O-Ring	Thermoplastic	Environment Resistant	Contacts Not Included	Receptacle Housing	N (Normal)	Panel Mount	37 pos	Unshielded		MIL-DTL-38999 Series I	For Male Pins	Bayonet Lock	Cadmium	35	15	D	Circular	Aluminum Alloy												22D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MS27468T15B35P | Datasheet
