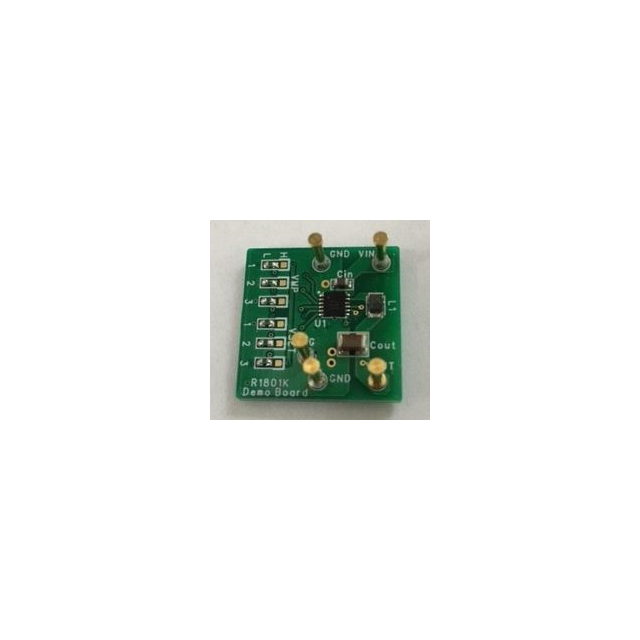

R1801K001A-EV

Active

Nisshinbo Micro Devices Inc

EVAL BOARD FOR R1801K001A

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

EVAL BOARD FOR R1801K001A

Technical Specifications

Parameters and characteristics for this part

Part	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Contents	Outputs and Type	Utilized IC / Part	Voltage - Output	Main Purpose	Package / Case	Current - Supply	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications
Nisshinbo Micro Devices Inc R1801K001A-EV	Buck	2.3 V	5.5 V	Board(s)	1 Non-Isolated Output	R1801K001A	2.8 V	DC/DC Step Down
Nisshinbo Micro Devices Inc R1801K003A-TR									12-UFDFN Exposed Pad	200 nA	DFN(PL)2730-12	85 °C	-40 °C	Surface Mount	2.3 V	5.5 V	Energy Harvesting
Nisshinbo Micro Devices Inc R1801K005A-TR									12-UFDFN Exposed Pad	200 nA	DFN(PL)2730-12	85 °C	-40 °C	Surface Mount	2.3 V	5.5 V	Energy Harvesting
Nisshinbo Micro Devices Inc R1801K006A-TR									12-UFDFN Exposed Pad	200 nA	DFN(PL)2730-12	85 °C	-40 °C	Surface Mount	2.3 V	5.5 V	Energy Harvesting

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

R1801K001A - 1 Non-Isolated Output DC/DC, Step Down Evaluation Board
