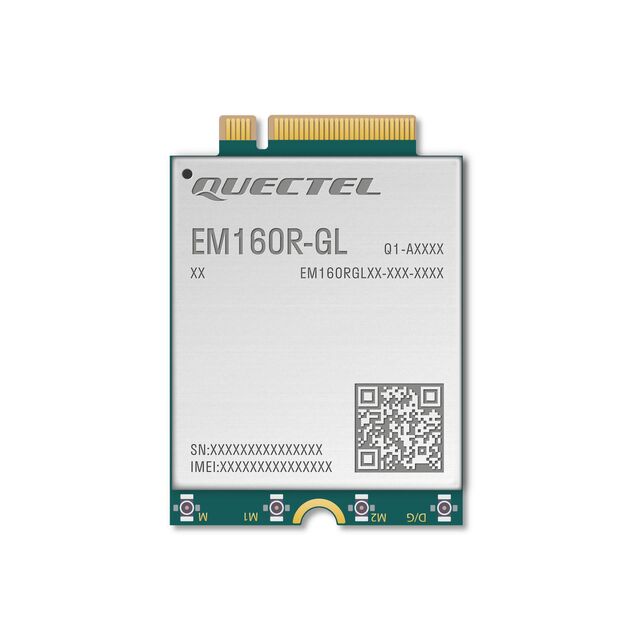

EM160RGLAU-M21-SGADA

Quectel

RF TXRX MOD CEL/NAV CARD

Search across all available documentation for this part.

Quectel

RF TXRX MOD CEL/NAV CARD

Technical Specifications

Parameters and characteristics for this part

Specification	EM160RGLAU-M21-SGADA

Antenna Type	Antenna Not Included
Data Rate	150 Mbps
Modulation	256-QAM
Mounting Type	Card Edge
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Module
Power - Output	24 dBm
Protocol	GPS, WCDMA, UMTS, GNSS, GLONASS, HSPA+, Galileo, Beidou, LTE
RF Family/Standard	Cellular, Navigation
Serial Interfaces	PCM, USB
Utilized IC / Part	SDX24-2
Voltage - Supply [Max]	4.4 V
Voltage - Supply [Min]	3.1 V

Part	Power - Output	RF Family/Standard	Utilized IC / Part	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Mounting Type	Modulation	Operating Temperature [Min]	Operating Temperature [Max]	Data Rate	Serial Interfaces	Antenna Type
Quectel EM160RGLAU-M21-SGADA	24 dBm	Cellular Navigation	SDX24-2	Beidou Galileo GLONASS GNSS GPS HSPA+ LTE UMTS WCDMA	4.4 V	3.1 V	Module	Card Edge	256-QAM	-25 °C	75 ░C	150 Mbps	PCM USB	Antenna Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 217.80

General part information

Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, HSPA+, LTE, UMTS, WCDMA Transceiver Module Antenna Not Included Card Edge
