M85049/1817N03

Active

AMPHENOL PCD

CONN BACKSHELL W/CLMP SZ17 SILV

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN BACKSHELL W/CLMP SZ17 SILV

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/1817N03

Cable Exit	180 °
Cable Opening [Max] [diameter]	9.52 mm
Cable Opening [Max] [diameter]	0.375 in
Cable Opening [Min] [diameter]	6.35 mm
Cable Opening [Min] [diameter]	0.25 in
Color	Silver
Diameter - Outside [diameter]	1.25 in
Diameter - Outside [diameter]	31.75 mm
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Ingress Protection	Environment Resistant
Material	Aluminum
Plating	Electroless Nickel
Shell Size - Insert	17
Shielding	Shielded
Thread Size	M25x1
Type	Backshell, Cable Clamp

Part	Cable Exit	Features	For Use With/Related Products	Shielding	Ingress Protection	Plating	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Thread Size	Shell Size - Insert	Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Shell Size - Insert
AMPHENOL PCD M85049/1817N03	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	Shielded	Environment Resistant	Electroless Nickel	Silver	9.52 mm	6.35 mm	0.25 in	0.375 in	1.25 in	31.75 mm	Aluminum	M25x1	17	Backshell Cable Clamp
AMPHENOL PCD M85049/1813W03	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	Shielded	Environment Resistant	Cadmium Nickel	Olive	9.52 mm	6.35 mm	0.25 in	0.375 in			Aluminum	M18x1	13	Backshell Cable Clamp
AMPHENOL PCD M85049/1819Z07	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	Shielded	Environment Resistant	Zinc Cobalt	Black					1.4 in	35.56 mm	Aluminum Alloy		19	Backshell Cable Clamp	19.05 mm	0.75 in	0.88 in	22.35 mm	F
AMPHENOL PCD M85049/1823Z03C	180 °	Clamp Screws	MIL-DTL-38999 Series III IV	Shielded	Environment Resistant	Zinc Cobalt	Black					1.65 "	41.91 mm	Aluminum Alloy		23	Backshell Cable Clamp	6.35 mm	0.25 in	0.38 in	9.65 mm	H

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

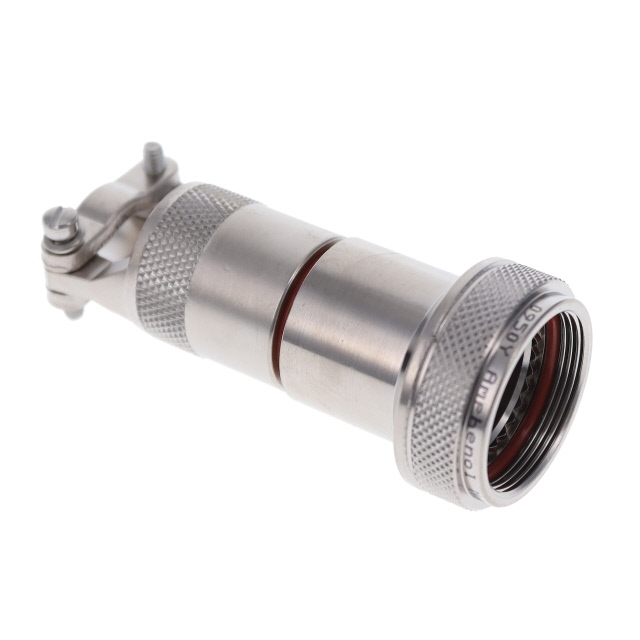

Silver Connector Backshell, Cable Clamp M25x1 17
