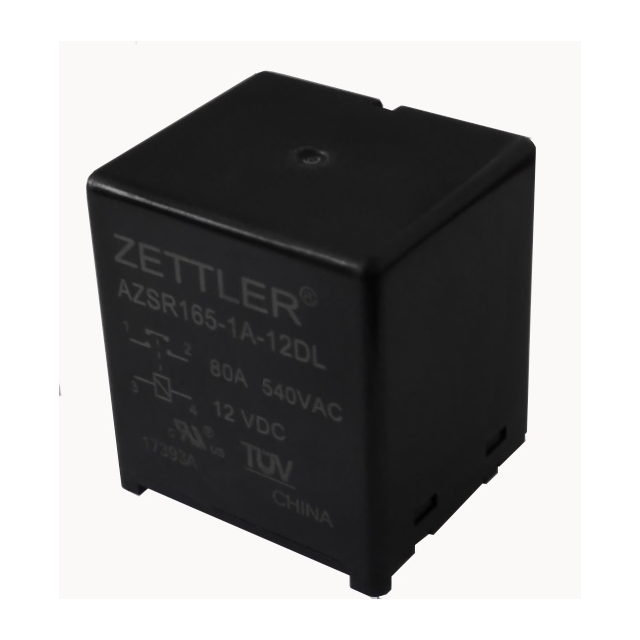

AZSR165-1A-24DL

Active

American Zettler

RELAY EV CHG SOLAR SPST 80A 24V

Search across all available documentation for this part.

Active

American Zettler

RELAY EV CHG SOLAR SPST 80A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZSR165-1A-24DL	AZSR165 Series

Approval Agency	TUV, UL	TUV, UL
Coil Current	92.3 mA	92.3 - 184.6 mA
Coil Insulation	Class F	Class F
Coil Resistance	260 Ohms	65 - 260 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	80 A	80 A
Load - Max Switching [Max]	55200 VA	55200 VA
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	18 VDC	9 - 18 VDC
Must Release Voltage	1.2 VDC	0.6 - 1.2 VDC
Operate Time	40 ms	40 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	EV Charging, Solar	EV Charging, Solar
Release Time	20 ms	20 ms
Switching Voltage	690 VAC	690 VAC
Termination Style	PC Pin	PC Pin

RELAY EV CHG SOLAR SPST 80A 24V

Part	Must Release Voltage	Coil Insulation	Coil Voltage	Contact Material	Operate Time	Switching Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Mounting Type	Load - Max Switching [Max]	Termination Style	Release Time	Relay Type	Approval Agency	Contact Rating (Current)	Coil Resistance	Coil Current	Must Operate Voltage	Coil Type
American Zettler AZSR165-1A-24DL	1.2 VDC	Class F	24 VDC	Silver Nickel (AgNi)	40 ms	690 VAC	85 °C	-40 °C	SPST-NO (1 Form A)	Through Hole	55200 VA	PC Pin	20 ms	EV Charging, Solar	TUV, UL	80 A	260 Ohms	92.3 mA	18 VDC	Non Latching
American Zettler AZSR165-1A-12DL	0.6 VDC	Class F	12 VDC	Silver Nickel (AgNi)	40 ms	690 VAC	85 °C	-40 °C	SPST-NO (1 Form A)	Through Hole	55200 VA	PC Pin	20 ms	EV Charging, Solar	TUV, UL	80 A	65 Ohms	184.6 mA	9 VDC	Non Latching
American Zettler AZSR165-1AE-24DL	1.2 VDC	Class F	24 VDC	Silver Tin Oxide (AgSnO)	40 ms	690 VAC	85 °C	-40 °C	SPST-NO (1 Form A)	Through Hole	55200 VA	PC Pin	20 ms	EV Charging, Solar	TUV, UL	80 A	260 Ohms	92.3 mA	18 VDC	Non Latching
American Zettler AZSR165-1AE-12DL	0.6 VDC	Class F	12 VDC	Silver Tin Oxide (AgSnO)	40 ms	690 VAC	85 °C	-40 °C	SPST-NO (1 Form A)	Through Hole	55200 VA	PC Pin	20 ms	EV Charging, Solar	TUV, UL	80 A	65 Ohms	184.6 mA	9 VDC	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EV Charging, Solar Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
