3-5-1430

Active

3M (TC)

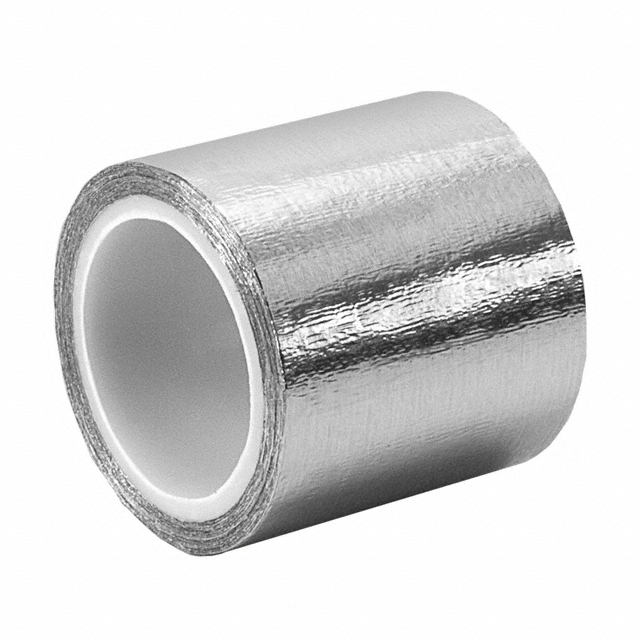

TAPE ALUMINUM FOIL SILVER 3"X5YD

Deep-Dive with AI

Search across all available documentation for this part.

3-5-1430

Active

3M (TC)

TAPE ALUMINUM FOIL SILVER 3"X5YD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-5-1430

Adhesive	Acrylic
Backing, Carrier	Dead Soft, Aluminum
Color	Silver
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Aluminum Foil
Temperature Range [Max]	300 °F
Temperature Range [Max]	149 °C
Temperature Range [Min]	-54 °C
Temperature Range [Min]	-65 °F
Thickness	5.5 mils
Thickness	0.14 mm
Thickness	0.0055 in
Thickness - Adhesive [x]	0.013 mm
Thickness - Adhesive [x]	0.0005 "
Thickness - Adhesive [x]	0.5 mils
Thickness - Backing, Carrier [custom]	0.005 "
Thickness - Backing, Carrier [custom]	5 mils
Thickness - Backing, Carrier [custom]	0.127 mm
Usage	Sealing
Width [x]	76.2 mm
Width [x]	3 in

1430 Series

...

Part	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Adhesive [x]	Thickness - Adhesive [x]	Thickness - Adhesive [x]	Thickness	Thickness	Thickness	Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life Start	Backing, Carrier	Width [diameter]	Width [diameter]	Color	Shelf Life	Tape Type	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Length	Length	Width	Width	Width	Length [x]	Length [x]	Width [x]	Width [x]	Length	Width	Usage
3M (TC) 3M 1430 CIRCLE-5.000"-100	0.005 "	5 mils	0.127 mm	0.013 mm	0.0005 "	0.5 mils	5.5 mils	0.14 mm	0.0055 in	Acrylic	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Aluminum Dead Soft	5 "	127 mm	Silver	18 Months	Aluminum Foil	300 °F	-54 °C	-65 °F	149 °C
3M (TC) 3M 1430 0.5" X 10"-250	0.005 "	5 mils	0.127 mm	0.013 mm	0.0005 "	0.5 mils	5.5 mils	0.14 mm	0.0055 in	Acrylic	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Aluminum Dead Soft			Silver	18 Months	Aluminum Foil	300 °F	-54 °C	-65 °F	149 °C	10 in	254 mm	0.5 in	12.7 mm	0.5 in
3M (TC) 3M 1430 0.5" X 1"-250	0.005 "	5 mils	0.127 mm	0.013 mm	0.0005 "	0.5 mils	5.5 mils	0.14 mm	0.0055 in	Acrylic	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Aluminum Dead Soft			Silver	18 Months	Aluminum Foil	300 °F	-54 °C	-65 °F	149 °C			0.5 in	12.7 mm	0.5 in	25.4 mm	1 in
3M (TC) 3M 1430 1" X 6"-100	0.005 "	5 mils	0.127 mm	0.013 mm	0.0005 "	0.5 mils	5.5 mils	0.14 mm	0.0055 in	Acrylic	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Aluminum Dead Soft			Silver	18 Months	Aluminum Foil	300 °F	-54 °C	-65 °F	149 °C	6 in	152.4 mm						25.4 mm	1 in
3M (TC) 3M 1430 0.25" X 60YD	0.005 "	5 mils	0.127 mm	0.013 mm	0.0005 "	0.5 mils	5.5 mils	0.14 mm	0.0055 in	Acrylic	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Aluminum Dead Soft			Silver	18 Months	Aluminum Foil	300 °F	-54 °C	-65 °F	149 °C	180 ft	55 m	0.25 in	6.35 mm	0.25 in					60 yds
3M (TC) 3M 1430 1.625" X 60YD	0.005 "	5 mils	0.127 mm	0.013 mm	0.0005 "	0.5 mils	5.5 mils	0.14 mm	0.0055 in	Acrylic	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Aluminum Dead Soft			Silver	18 Months	Aluminum Foil	300 °F	-54 °C	-65 °F	149 °C	180 ft	55 m			1.63 in 41.28 mm					60 yds	1 5/8
3M (TC) 3M 1430 9" X 9.25"-25	0.005 "	5 mils	0.127 mm	0.013 mm	0.0005 "	0.5 mils	5.5 mils	0.14 mm	0.0055 in	Acrylic	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Aluminum Dead Soft			Silver	18 Months	Aluminum Foil	300 °F	-54 °C	-65 °F	149 °C	9.25 inches	234.95 mm						228.6 mm	9 in
3M (TC) 3-5-1430	0.005 "	5 mils	0.127 mm	0.013 mm	0.0005 "	0.5 mils	5.5 mils	0.14 mm	0.0055 in	Acrylic	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Aluminum Dead Soft			Silver	18 Months	Aluminum Foil	300 °F	-54 °C	-65 °F	149 °C	15 ft	4.6 m						76.2 mm	3 in	5 yd		Sealing
3M (TC) 0.625-5-1430	0.005 "	5 mils	0.127 mm	0.013 mm	0.0005 "	0.5 mils	5.5 mils	0.14 mm	0.0055 in	Acrylic	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Aluminum Dead Soft			Silver	18 Months	Aluminum Foil	300 °F	-54 °C	-65 °F	149 °C	15 ft	4.6 m	0.625 in	16 mm	0.63 in					5 yd
3M (TC) 3M 1430 7" X 10.5"-25	0.005 "	5 mils	0.127 mm	0.013 mm	0.0005 "	0.5 mils	5.5 mils	0.14 mm	0.0055 in	Acrylic	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	Aluminum Dead Soft			Silver	18 Months	Aluminum Foil	300 °F	-54 °C	-65 °F	149 °C	10.5 in	266.7 mm						177.8 mm	7 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.09
		10	$ 52.70
		25	$ 50.99
		100	$ 47.26

Description

General part information

1430 Series

Aluminum Foil Tape Acrylic Adhesive Silver 3.00" (76.20mm) X 15' (4.6m) 5 yds

Documents

Technical documentation and resources

No documents available
