4951(1/2"X36YD)

Active

3M (TC)

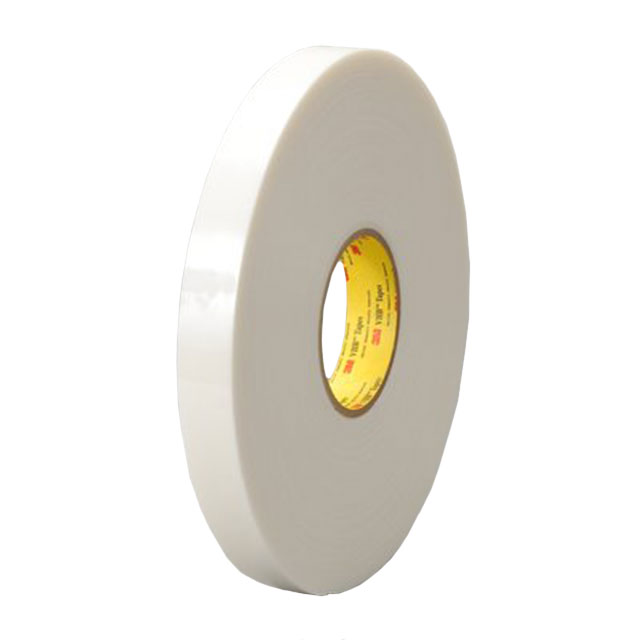

TAPE DBL SIDED WHITE 1/2"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher

4951(1/2"X36YD)

Active

3M (TC)

TAPE DBL SIDED WHITE 1/2"X36YDS

Deep-Dive with AI

DocumentsDate Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4951(1/2"X36YD)

Adhesive	Acrylic
Backing, Carrier	Polyester Film
Color	White
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Thickness	0.04 in
Thickness	1.016 mm
Thickness	1.016 mm
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Usage	General Purpose
Width	0.5 in
Width	12.7 mm
Width	0.5 in

4951 Series

...

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Length	Length	Length	Thickness	Thickness	Thickness	Shelf Life	Width	Width	Width	Adhesive	Temperature Range	Temperature Range	Usage	Backing, Carrier	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life Start	Width [diameter]	Width [x]	Width [x]	Length [x]	Width	Length [x]
3M (TC) 4951-0.5-5	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.002 "	0.051 mm	2 mils	White	4.6 m	15 ft	5 yd	1.143 mm	45 mils	0.045 in	24 Months	0.5 in	12.7 mm	0.5 in	Acrylic	200 °F	93 °C	General Purpose	Polyester	43 mils	0.043 "	1.092 mm	Date of Shipment
3M (TC) 3M 4951 CIRCLE-1.25"-500	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.002 "	0.051 mm	2 mils	White				1.143 mm	45 mils	0.045 in	24 Months		31.75 mm	1.25 in	Acrylic	200 °F	93 °C		Polyester Film	43 mils	0.043 "	1.092 mm	Date of Shipment
3M (TC) 3M 4951 6" X 9"-2	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.002 "	0.051 mm	2 mils	White	228.6 mm	9 "		1.143 mm	45 mils	0.045 in	24 Months				Acrylic	200 °F	93 °C		Polyester Film	43 mils	0.043 "	1.092 mm	Date of Shipment		6 in	152.4 mm
3M (TC) 3M 4951 3" X 3"-15	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.002 "	0.051 mm	2 mils	White	76.2 mm			1.143 mm	45 mils	0.045 in	24 Months				Acrylic	200 °F	93 °C		Polyester Film	43 mils	0.043 "	1.092 mm	Date of Shipment		3 in	76.2 mm	3 in
3M (TC) 3M 4951 CIRCLE-0.5"-250	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.002 "	0.051 mm	2 mils	White				1.143 mm	45 mils	0.045 in	24 Months		12.7 mm	0.5 in	Acrylic	200 °F	93 °C		Polyester Film	43 mils	0.043 "	1.092 mm	Date of Shipment	0.5 in
3M (TC) 4951-4-5	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.002 "	0.051 mm	2 mils	White	4.6 m	15 ft	5 yd	1.143 mm	45 mils	0.045 in	24 Months				Acrylic	200 °F	93 °C	General Purpose	Polyester	43 mils	0.043 "	1.092 mm	Date of Shipment		4 "	101.6 mm
3M (TC) 1.75-5-4951	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.002 "	0.051 mm	2 mils	White	4.6 m	15 ft	5 yd	1.143 mm	45 mils	0.045 in	24 Months		44.45 mm	1.75 in	Acrylic	200 °F	93 °C		Polyester Film	43 mils	0.043 "	1.092 mm	Date of Shipment					1 3/4
3M (TC) 4951(1/2"X36YD)	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.002 "	0.051 mm	2 mils	White	32.9 m	108 ft	36 yd	1.016 mm	1.016 mm	0.04 in	24 Months	0.5 in	12.7 mm	0.5 in	Acrylic			General Purpose	Polyester Film				Date of Shipment
3M (TC) 7-5-4951	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.002 "	0.051 mm	2 mils	White	4.6 m	15 ft	5 yd	1.143 mm	45 mils	0.045 in	24 Months				Acrylic	200 °F	93 °C		Polyester Film	43 mils	0.043 "	1.092 mm	Date of Shipment		7 in	177.8 mm
3M (TC) 3M 4951 1" X 4"-100	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.002 "	0.051 mm	2 mils	White				1.143 mm	45 mils	0.045 in	24 Months				Acrylic	200 °F	93 °C		Polyester Film	43 mils	0.043 "	1.092 mm	Date of Shipment		1 in	25.4 mm	4 "		101.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	18	$ 154.07

Description

General part information

4951 Series

Double Coated, Double Sided Tape Acrylic Adhesive White 0.50" (12.70mm) 1/2" X 108' (32.9m) 36 yds
