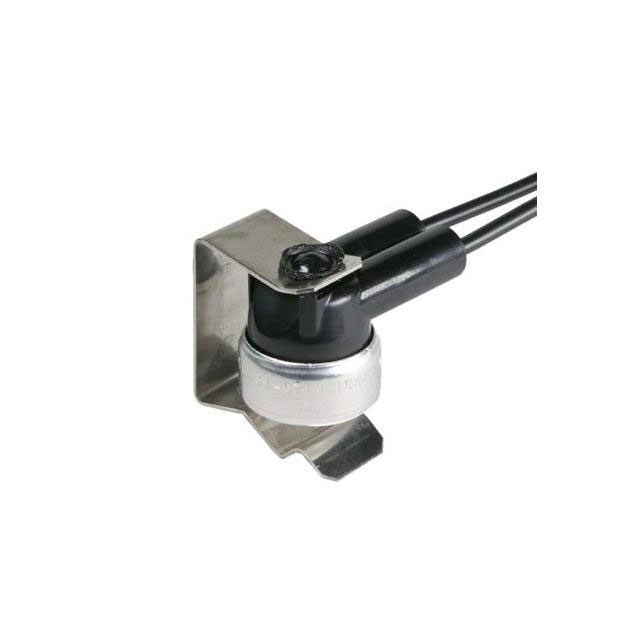

3NT01L-H7929

Active

Sensata Technologies

THERMOSTAT 115DEG C SPST-NC MOD

Search across all available documentation for this part.

Active

Sensata Technologies

THERMOSTAT 115DEG C SPST-NC MOD

Technical Specifications

Parameters and characteristics commom to parts in this series

THERMOSTAT 50DEG C SPST-NC MODUL

Part	Current Rating - AC	Current Rating - AC	Package / Case	Termination Style	Switching Cycles	Mounting Type	Switching Temperature	Switching Temperature	Current Rating - DC	Current Rating - DC	Reset Temperature	Reset Temperature	Circuit	Switching Temperature
Sensata Technologies 3NT01L-H7921	10 A	10 A	Module	Wire Leads	100000	Chassis Mount	122 °F	50 °C	30 V	1 A	39 °C	102.2 °F	SPST-NC
Sensata Technologies 3NT01L-H7907	10 A	10 A	Module	Wire Leads	100000	Chassis Mount	100 °C	100 °C	30 V	1 A	89 °C	192.2 °F	SPST-NC
Sensata Technologies 3NT01L-H7903	10 A	10 A	Module	Wire Leads	100000	Chassis Mount		149 °F	30 V	1 A	54 °C	129.2 °F	SPST-NC	65 °C
Sensata Technologies 3NT01L-H7929	10 A	10 A	Module	Wire Leads	100000	Chassis Mount	115 °C	115 °C	30 V	1 A	104 °C	219.2 °F	SPST-NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	150	$ 64.85

General part information

THERMOSTAT 115DEG C SPST-NC MOD

Technical documentation and resources

No documents available
