Q-2004T00030.5M

Active

Amphenol Custom Cable

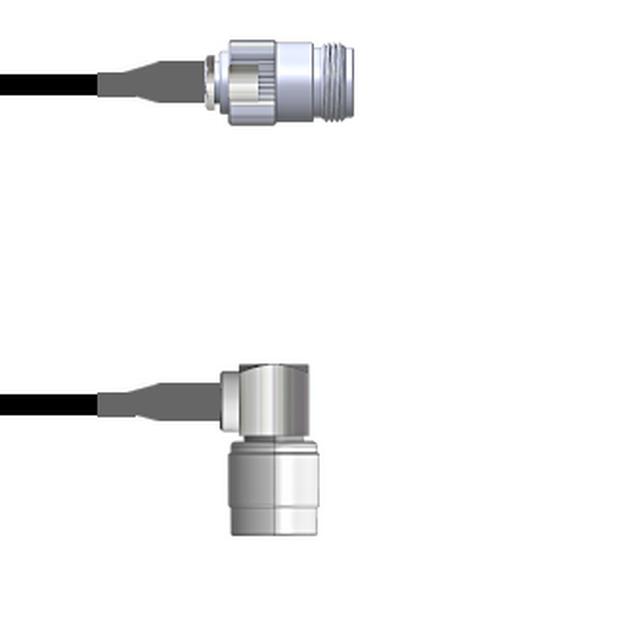

CBL ASSY NTYPE-TNC JCK-PL 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2004T00030.5M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-PL 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2004T00030.5M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms

Q-2004T0 Series

Part	2nd Connector Mounting Type	Length	Length	Length	2nd Connector	Overall Impedance	Cable Type	2nd Contact Gender	Features	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector	1st Contact Gender	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-2004T00052.5M	Free Hanging (In-Line)	8.2 '	98.4 in	2.5 m	TNC Plug Right Angle	50 Ohms	RG-316	Male	Shielded	11 GHz	Free Hanging (In-Line)	N-Type Jack	Female	Copper
Amphenol Custom Cable Q-2004T00030.5M	Free Hanging (In-Line)		19.69 "	50 cm	TNC Plug Right Angle	50 Ohms	RG-174	Male	Shielded	11 GHz	Free Hanging (In-Line)	N-Type Jack	Female	Black
Amphenol Custom Cable Q-2004T0003.25M	Free Hanging (In-Line)				TNC Plug Right Angle	50 Ohms	RG-174	Male	Shielded	11 GHz	Free Hanging (In-Line)	N-Type Jack	Female	Black	9.843 "	250 mm
Amphenol Custom Cable Q-2004T0003002M	Free Hanging (In-Line)	6.6 ft	78.7 in	2 m	TNC Plug Right Angle	50 Ohms	RG-174	Male	Shielded	11 GHz	Free Hanging (In-Line)	N-Type Jack	Female	Black
Amphenol Custom Cable Q-2004T0005.75M	Free Hanging (In-Line)		29.53 "	750 mm	TNC Plug Right Angle	50 Ohms	RG-316	Male	Shielded	11 GHz	Free Hanging (In-Line)	N-Type Jack	Female	Copper
Amphenol Custom Cable Q-2004T00051.5M	Free Hanging (In-Line)	4.9 ft	59.1 in	1.5 m	TNC Plug Right Angle	50 Ohms	RG-316	Male	Shielded	11 GHz	Free Hanging (In-Line)	N-Type Jack	Female	Copper
Amphenol Custom Cable Q-2004T0003003M	Free Hanging (In-Line)	9.8 '	118.1 in	3 m	TNC Plug Right Angle	50 Ohms	RG-174	Male	Shielded	11 GHz	Free Hanging (In-Line)	N-Type Jack	Female	Black
Amphenol Custom Cable Q-2004T0003.75M	Free Hanging (In-Line)		29.53 "	750 mm	TNC Plug Right Angle	50 Ohms	RG-174	Male	Shielded	11 GHz	Free Hanging (In-Line)	N-Type Jack	Female	Black
Amphenol Custom Cable Q-2004T0005009i	Free Hanging (In-Line)		9 "	228.6 mm	TNC Plug Right Angle	50 Ohms	RG-316	Male	Shielded	11 GHz	Free Hanging (In-Line)	N-Type Jack	Female	Copper
Amphenol Custom Cable Q-2004T0005024i	Free Hanging (In-Line)		24 "	609.6 mm	TNC Plug Right Angle	50 Ohms	RG-316	Male	Shielded	11 GHz	Free Hanging (In-Line)	N-Type Jack	Female	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 50.96
		25	$ 49.98
		50	$ 49.00
		100	$ 48.02
		250	$ 47.04

Description

General part information

Q-2004T0 Series

Cable Assembly Coaxial N-Type to TNC RG-174 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
