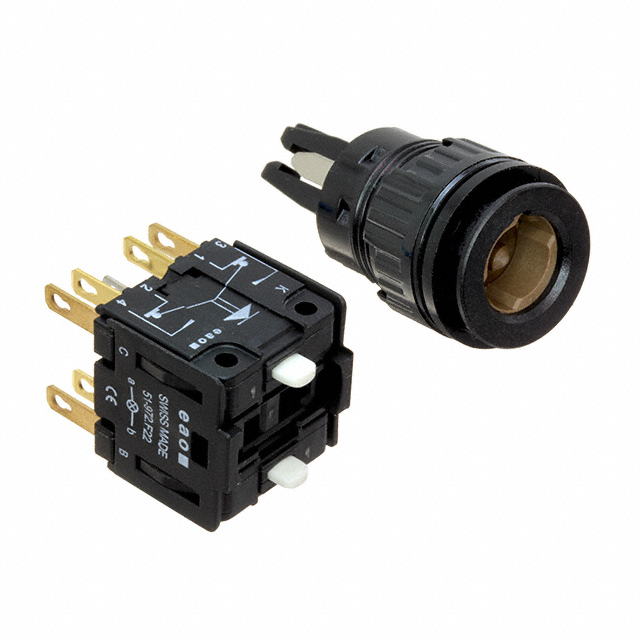

52-571.F22A

Active

EAO

SWITCH SELECT 3POS 4PST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH SELECT 3POS 4PST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	52-571.F22A

Approval Agency	ENEC, CE, UL, CSA
Circuit	4PST-2NO/2NC
Current Rating (Amps)	5 A
Depth Behind Flange [z]	42 mm
Illumination	Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-Off-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	250 V

SWITCH SELECT 3POS 4PST 5A 250V

Part	Circuit	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Depth Behind Flange [z]	Switch Function	Termination Style	Termination Style	Termination Style	Approval Agency	Illumination	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Mechanical Life	Type	Ingress Protection
EAO 52-571.F22A	4PST-2NO/2NC	5 A	55 °C	-25 °C	42 mm	On-Off-On	0.11 in	Quick Connect, Solder	2.8 mm	CE, CSA, ENEC, UL	Illuminated	250 V	16.2 mm	100000 Cycles	Standard	IP65 - Dust Tight, Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 3 Position 4PST-2NO/2NC 5A (AC) 250 V Panel Mount
