RLB0712-150KL

Active

Bourns Inc.

INDUCTOR,FERRITE,15UH,10+% TOL,10-% TOL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RLB0712-150KL

Active

Bourns Inc.

INDUCTOR,FERRITE,15UH,10+% TOL,10-% TOL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RLB0712-150KL

Current Rating (Amps)	900 mA
DC Resistance (DCR) [Max]	90 mOhm
Frequency - Self Resonant	10 MHz
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Inductance	15 µH
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Vertical Cylinder
Q @ Freq	20, 2.52 MHz
Shielding	Unshielded
Size / Dimension	6.7 mm
Size / Dimension [diameter]	0.264 "
Tolerance	10 %
Type	Wirewound, Drum Core

RLB0712 Series

Part	Q @ Freq	Size / Dimension	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Frequency - Self Resonant	Package / Case	Mounting Type	Type	Inductance	DC Resistance (DCR)	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Inductance Frequency - Test
Bourns Inc. RLB0712-560KL	2.52 MHz 20	6.7 mm	0.264 "	11 mm	0.433 in	400 mA	Ferrite	125 °C	-40 °C	Unshielded	5 MHz	Radial Vertical Cylinder	Through Hole	Drum Core Wirewound	56 µH	210 mOhm	10 %
Bourns Inc. RLB0712-820KL	2.52 MHz 20	6.7 mm	0.264 "			0.34 A	Ferrite	125 °C	-40 °C	Unshielded	5 MHz	Radial Vertical Cylinder	Through Hole	Drum Core Wirewound	82 µH	350 mOhm	10 %	0.394 in	10 mm
Bourns Inc. RLB0712-121KL	20 796 kHz	6.7 mm	0.264 "	11 mm	0.433 in	300 mA	Ferrite	125 °C	-40 °C	Unshielded	4 MHz	Radial Vertical Cylinder	Through Hole	Drum Core Wirewound			10 %			450 mOhm
Bourns Inc. RLB0712-470KL	2.52 MHz 20	6.7 mm	0.264 "	11 mm	0.433 in	450 mA	Ferrite	125 °C	-40 °C	Unshielded	6 MHz	Radial Vertical Cylinder	Through Hole	Drum Core Wirewound	47 µH	180 mOhm	10 %
Bourns Inc. RLB0712-100KL	2.52 MHz 20	6.7 mm	0.264 "	11 mm	0.433 in	1.1 A	Ferrite	125 °C	-40 °C	Unshielded	16 MHz	Radial Vertical Cylinder	Through Hole	Drum Core Wirewound	10 µH		10 %			70 mOhm
Bourns Inc. RLB0712-271KL	20 796 kHz	6.7 mm	0.264 "	11 mm	0.433 in	0.22 A	Ferrite	125 °C	-40 °C	Unshielded	2.5 MHz	Radial Vertical Cylinder	Through Hole	Drum Core Wirewound	270 µH		10 %			1 Ohm
Bourns Inc. RLB0712-150KL	2.52 MHz 20	6.7 mm	0.264 "	11 mm	0.433 in	900 mA	Ferrite	125 °C	-40 °C	Unshielded	10 MHz	Radial Vertical Cylinder	Through Hole	Drum Core Wirewound	15 µH		10 %			90 mOhm
Bourns Inc. RLB0712-102KL		6.7 mm	0.264 "	11 mm	0.433 in		Ferrite	125 °C	-40 °C	Unshielded		Radial Vertical Cylinder	Through Hole	Drum Core Wirewound	1 mH		10 %				2.52 MHz
Bourns Inc. RLB0712-120KL	2.52 MHz 20	6.7 mm	0.264 "	11 mm	0.433 in	1 A	Ferrite	125 °C	-40 °C	Unshielded	12 MHz	Radial Vertical Cylinder	Through Hole	Drum Core Wirewound	12 µH		10 %			80 mOhm
Bourns Inc. RLB0712-561KL	20 796 kHz	6.7 mm	0.264 "	11 mm	0.433 in	150 mA	Ferrite	125 °C	-40 °C	Unshielded	2 MHz	Radial Vertical Cylinder	Through Hole	Drum Core Wirewound	560 µH		10 %			1.8 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1200	$ 0.16
Newark	Each	1000	$ 0.15
		2500	$ 0.13

Description

General part information

RLB0712 Series

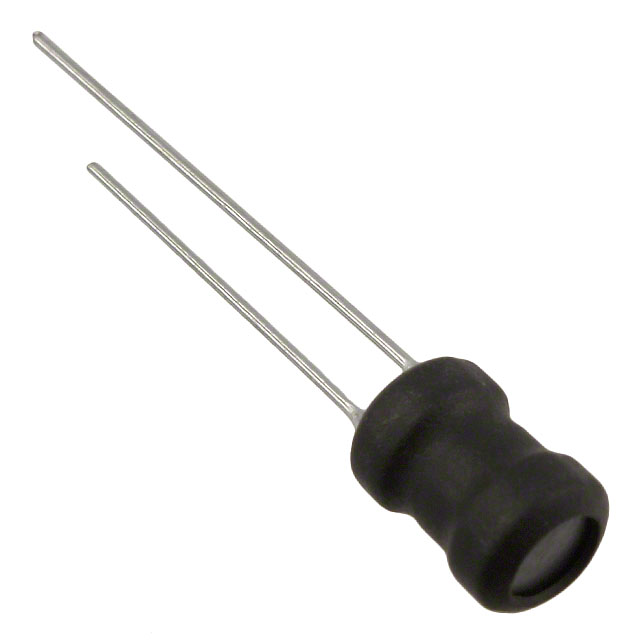

15 µH Unshielded Drum Core, Wirewound Inductor 900 mA 90mOhm Max Radial, Vertical Cylinder
