SWT6-M2BTR

Obsolete

TT Electronics/BI

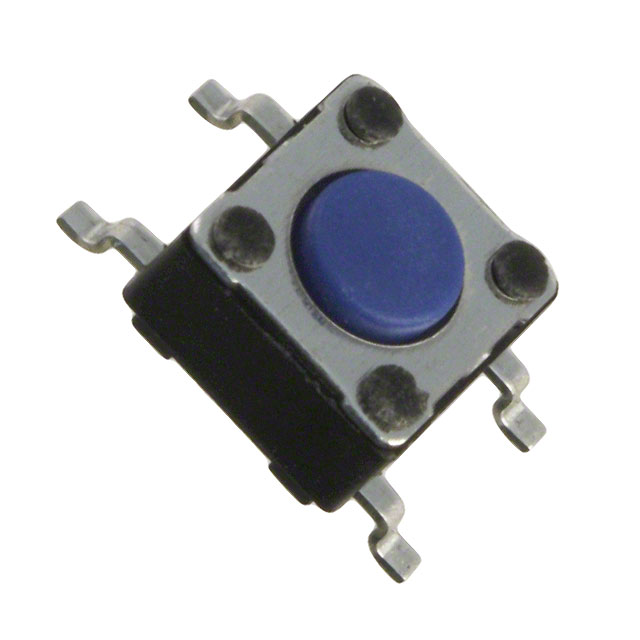

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Obsolete

TT Electronics/BI

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SWT6-M2BTR	SWT6 Series

Actuator Height off PCB, Vertical [z]	4.3 mm	4.3 mm
Actuator Length, Right Angle	-	8.35 mm
Actuator Orientation	Top Actuated	Top Actuated, Side Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	500000 Cycles	500000 Cycles
Mounting Type	Surface Mount	Surface Mount, Through Hole, Right Angle
Operating Force	260 gf	100 - 260 gf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	6 mm	6 - 7.4 mm
Outline [y]	6 mm	6 - 6.5 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Gull Wing	Gull Wing, PC Pin

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Circuit	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Termination Style	Mechanical Life	Mounting Type	Actuator Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Illumination	Outline [y]	Outline [x]	Operating Force	Actuator Length, Right Angle
TT Electronics/BI SWT6-M2GTR	SPST-NO	0.05 A, 12 VDC	4.3 mm	Gull Wing	500000 Cycles	Surface Mount	Top Actuated	-20 C	70 °C	Standard	Off-Mom	Non-Illuminated	6 mm	6 mm
TT Electronics/BI SWT6-R6K	SPST-NO	0.05 A, 12 VDC		PC Pin	500000 Cycles	Through Hole, Right Angle	Side Actuated	-20 C	70 °C	Standard	Off-Mom	Non-Illuminated	6.5 mm	7.4 mm	100 gf	8.35 mm
TT Electronics/BI SWT6-M2BTR	SPST-NO	0.05 A, 12 VDC	4.3 mm	Gull Wing	500000 Cycles	Surface Mount	Top Actuated	-20 C	70 °C	Standard	Off-Mom	Non-Illuminated	6 mm	6 mm	260 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
