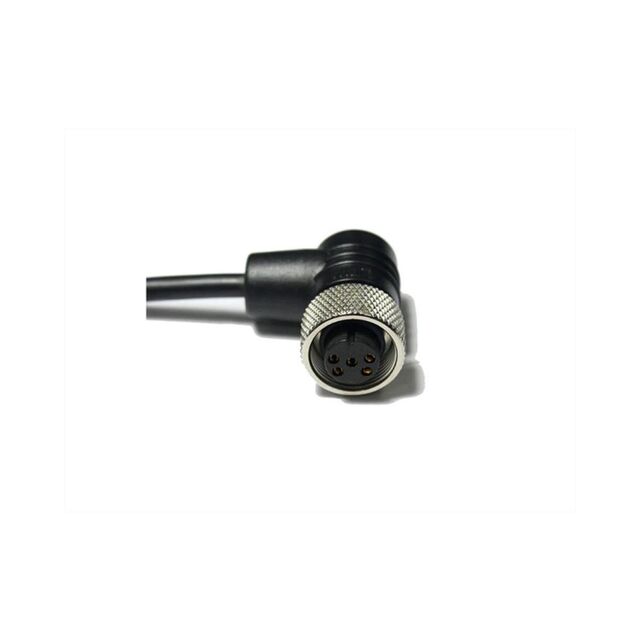

BSD-06BFFM-SR6A10

Active

Amphenol LTW

CERES, STANDARD SIZE, METAL, SHIELDED 5A, 06 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED, LENG

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, STANDARD SIZE, METAL, SHIELDED 5A, 06 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOLDED, LENG

Technical Specifications

Parameters and characteristics for this part

Specification	BSD-06BFFM-SR6A10

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	6
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	B
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP66
Shielding	Shielded
Usage	Industrial Environments

Part	1st Connector Mounting Type	1st Connector Number of Positions Loaded	1st Connector Type	1st Connector Orientation [custom]	Usage	Cable Material	Color	1st Connector Gender	1st Connector Number of Positions	Ingress Protection	1st Connector Shell Size - Insert	Shielding	Cable Type	Assembly Configuration	2nd Connector Type	Length [x]	Length [x]
Amphenol LTW BSD-06BFFM-SL6A10	Free Hanging (In-Line)	All	Plug	Keyed	Industrial Environments	Polyvinyl Chloride (PVC)	Black	Female Sockets	6	IP66	B	Shielded	Round	Standard	Wire Leads
Amphenol LTW BSD-06BFFM-SR6A01	Free Hanging (In-Line)	All	Plug Right Angle	Keyed	Industrial Environments	Polyvinyl Chloride (PVC)	Black	Female Sockets	6	IP66	B	Shielded	Round	Standard	Wire Leads	1 m	3.28 ft
Amphenol LTW BSD-06BFFM-SR6A05	Free Hanging (In-Line)	All	Plug Right Angle	Keyed	Industrial Environments	Polyvinyl Chloride (PVC)	Black	Female Sockets	6	IP66	B	Shielded	Round	Standard	Wire Leads	500 mm	1.64 ft
Amphenol LTW BSD-06BFFM-SR6A10	Free Hanging (In-Line)	All	Plug Right Angle	Keyed	Industrial Environments	Polyvinyl Chloride (PVC)	Black	Female Sockets	6	IP66	B	Shielded	Round	Standard	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Shielded 32.8' (10.00m)
