HCMD-05-T-02.00-01-S
ActiveSamtec Inc.
CBL ASSY .100"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HCMD-05-T-02.00-01-S
ActiveSamtec Inc.
CBL ASSY .100"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HCMD-05-T-02.00-01-S |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length | 50.8 mm |
| Length | 2 " |
| Length | 0.167 ' |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.87 | |
| 10 | $ 12.20 | |||
| 25 | $ 11.04 | |||
| 50 | $ 10.25 | |||
| 100 | $ 9.53 | |||
| 250 | $ 8.69 | |||
| 500 | $ 8.12 | |||
| 1000 | $ 7.60 | |||
Description
General part information
HCMD-05 Series

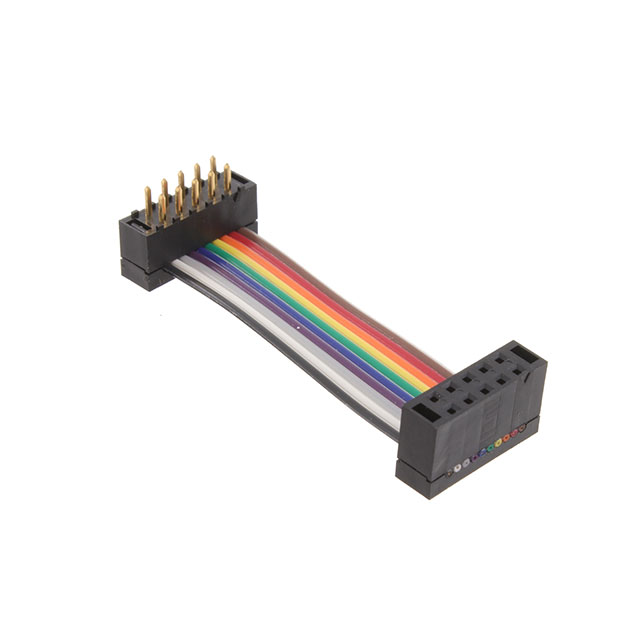

10 Position Cable Assembly Rectangular Socket to Plug 0.167' (50.80mm, 2.00")
