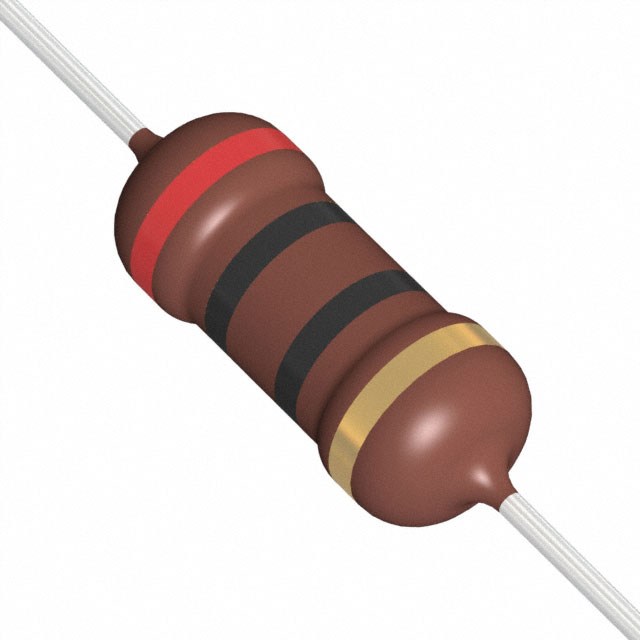

RR02J20RTB
ActiveTE Connectivity Passive Product
RES 20 OHM 5% 2W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RR02J20RTB
ActiveTE Connectivity Passive Product
RES 20 OHM 5% 2W AXIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RR02J20RTB |
|---|---|
| Composition | Metal Film |
| Features | Pulse Withstanding, Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 235 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 2 W |
| Resistance | 20 Ohms |
| Size / Dimension [diameter] | 0.138 in |
| Size / Dimension [diameter] | 3.5 mm |
| Size / Dimension [x] | 9 mm |
| Size / Dimension [x] | 0.354 " |
| Supplier Device Package | Axial |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
RR02J Series
| Part | Package / Case | Resistance | Number of Terminations | Composition | Temperature Coefficient | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Power (Watts) | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Passive Product | Axial | 120 kOhms | 2 | Metal Film | 300 ppm/°C | 0.138 in | 3.5 mm | 9 mm | 0.354 " | Flame Retardant Coating Pulse Withstanding Safety | -55 °C | 235 °C | 5 % | 2 W | Axial |
TE Connectivity Passive Product | Axial | 120 Ohms | 2 | Metal Film | 300 ppm/°C | 0.138 in | 3.5 mm | 9 mm | 0.354 " | Flame Retardant Coating Pulse Withstanding Safety | -55 °C | 235 °C | 5 % | 2 W | Axial |
TE Connectivity Passive Product | Axial | 220 Ohms | 2 | Metal Film | 300 ppm/°C | 0.138 in | 3.5 mm | 9 mm | 0.354 " | Flame Retardant Coating Pulse Withstanding Safety | -55 °C | 235 °C | 5 % | 2 W | Axial |
TE Connectivity Passive Product | Axial | 20 Ohms | 2 | Metal Film | 300 ppm/°C | 0.138 in | 3.5 mm | 9 mm | 0.354 " | Flame Retardant Coating Pulse Withstanding Safety | -55 °C | 235 °C | 5 % | 2 W | Axial |
TE Connectivity Passive Product | Axial | 330 mOhms | 2 | Metal Film | 300 ppm/°C | 0.138 in | 3.5 mm | 9 mm | 0.354 " | Flame Retardant Coating Pulse Withstanding Safety | -55 °C | 235 °C | 5 % | 2 W | Axial |
TE Connectivity Passive Product | Axial | 510 kOhms | 2 | Metal Film | 300 ppm/°C | 0.138 in | 3.5 mm | 9 mm | 0.354 " | Flame Retardant Coating Pulse Withstanding Safety | -55 °C | 235 °C | 5 % | 2 W | Axial |
TE Connectivity Passive Product | Axial | 56 Ohms | 2 | Metal Film | 300 ppm/°C | 0.138 in | 3.5 mm | 9 mm | 0.354 " | Flame Retardant Coating Pulse Withstanding Safety | -55 °C | 235 °C | 5 % | 2 W | Axial |
TE Connectivity Passive Product | Axial | 3.9 kOhms | 2 | Metal Film | 300 ppm/°C | 0.138 in | 3.5 mm | 9 mm | 0.354 " | Flame Retardant Coating Pulse Withstanding Safety | -55 °C | 235 °C | 5 % | 2 W | Axial |
TE Connectivity Passive Product | Axial | 910 mOhms | 2 | Metal Film | 300 ppm/°C | 0.138 in | 3.5 mm | 9 mm | 0.354 " | Flame Retardant Coating Pulse Withstanding Safety | -55 °C | 235 °C | 5 % | 2 W | Axial |
TE Connectivity Passive Product | Axial | 18 kOhms | 2 | Metal Film | 300 ppm/°C | 0.138 in | 3.5 mm | 9 mm | 0.354 " | Flame Retardant Coating Pulse Withstanding Safety | -55 °C | 235 °C | 5 % | 2 W | Axial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.26 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.15 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| Tape & Box (TB) | 1000 | $ 0.05 | ||
| 2000 | $ 0.05 | |||
| 5000 | $ 0.05 | |||
| 10000 | $ 0.04 | |||
| 25000 | $ 0.04 | |||
| 50000 | $ 0.04 | |||
| 100000 | $ 0.04 | |||
Description
General part information
RR02J Series
20 Ohms ±5% 2W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Metal Film
