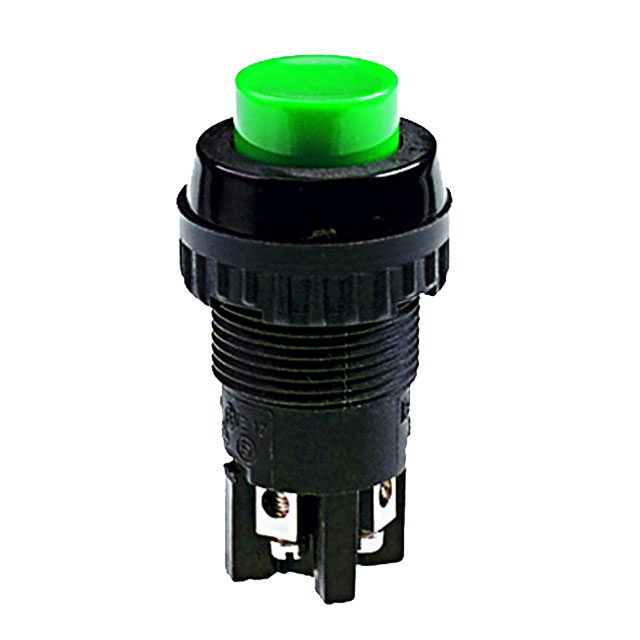

1.01.102.011/0104
ActiveRAFI USA
SWITCH PUSH DPST-NO/NC 2A 250V
Deep-Dive with AI
Search across all available documentation for this part.
1.01.102.011/0104
ActiveRAFI USA
SWITCH PUSH DPST-NO/NC 2A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1.01.102.011/0104 | 1.01102 Series |
|---|---|---|
| - | - | |
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Round, Button | Round, Button |
| Circuit | DPST-NO/NC | DPST-NO/NC, DPST-NO |
| Color - Actuator/Cap | Black | Black |
| Current Rating (Amps) | 2 A | 2 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Ingress Protection | IP40 | IP40 |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 18.2 mm | 18.2 mm |
| Switch Function | Off-Mom, On-Mom | Off-Mom, On-Mom |
| Termination Style | Screw Terminal | Screw Terminal |
| Type | Standard | Standard |
| Voltage Rating - AC | 250 V | 250 V |
1.01102 Series
SWITCH PUSH DPST-NO/NC 2A 250V
| Part | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Actuator Type | Termination Style | Actuator Marking | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Switch Function | Electrical Life | Ingress Protection | Color - Actuator/Cap | Voltage Rating - AC | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RAFI USA 1.01.102.011/0104 | 2 A | 18.2 mm | Button, Round | Screw Terminal | No Marking | -25 °C | 85 °C | DPST-NO/NC | Off-Mom, On-Mom | 50000 Cycles | IP40 | Black | 250 V | Standard | Panel Mount, Front |
RAFI USA 1.01.102.001/0104 | 2 A | 18.2 mm | Button, Round | Screw Terminal | No Marking | -25 °C | 85 °C | DPST-NO | Off-Mom | 50000 Cycles | IP40 | Black | 250 V | Standard | Panel Mount, Front |
RAFI USA 1.01102.1210104 | |||||||||||||||
RAFI USA 1.01.102.001/0205 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 14.46 | |
Description
General part information
1.01102 Series
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
