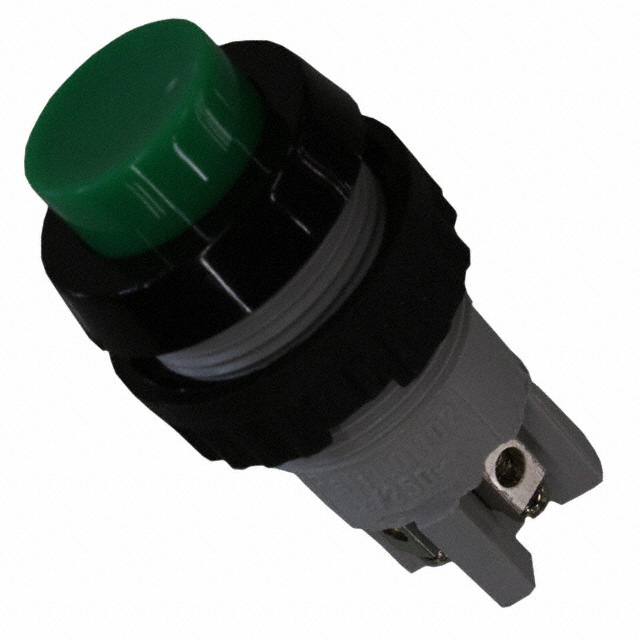

1.01.102.001/0104

Active

RAFI USA

SWITCH PUSH DPST-NO 2A 250V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH PUSH DPST-NO 2A 250V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 15.34

General part information

Pushbutton Switch DPST-NO Standard Panel Mount, Front

Technical documentation and resources

Specification	1.01.102.001/0104	1.01102 Series

	-	-
Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	DPST-NO	DPST-NO/NC, DPST-NO
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	2 A	2 A
Electrical Life	50000 Cycles	50000 Cycles
Ingress Protection	IP40	IP40
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	18.2 mm	18.2 mm
Switch Function	Off-Mom	Off-Mom, On-Mom
Termination Style	Screw Terminal	Screw Terminal
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

Part	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Switch Function	Electrical Life	Ingress Protection	Color - Actuator/Cap	Voltage Rating - AC	Type	Mounting Type
RAFI USA 1.01.102.011/0104	2 A	18.2 mm	Button, Round	Screw Terminal	No Marking	-25 °C	85 °C	DPST-NO/NC	Off-Mom, On-Mom	50000 Cycles	IP40	Black	250 V	Standard	Panel Mount, Front
RAFI USA 1.01.102.001/0104	2 A	18.2 mm	Button, Round	Screw Terminal	No Marking	-25 °C	85 °C	DPST-NO	Off-Mom	50000 Cycles	IP40	Black	250 V	Standard	Panel Mount, Front
RAFI USA 1.01102.1210104
RAFI USA 1.01.102.001/0205
