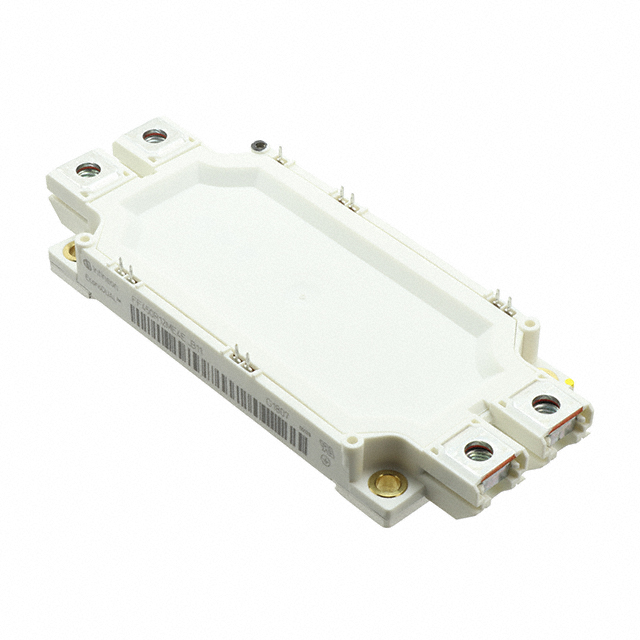

FF450R12ME4EB11BPSA1

Obsolete

Infineon Technologies

MOD IGBT MED PWR ECONOD-4

Search across all available documentation for this part.

Obsolete

Infineon Technologies

MOD IGBT MED PWR ECONOD-4

Technical Specifications

Parameters and characteristics for this part

Specification	FF450R12ME4EB11BPSA1

Configuration	Half Bridge Inverter
Current - Collector (Ic) (Max) [Max]	450 A
Current - Collector Cutoff (Max) [Max]	3 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	28 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	AG-ECONOD-6
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Configuration	Input	Supplier Device Package	IGBT Type	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max) [Max]	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]
Infineon Technologies FF450R12ME4EB11BPSA1	Half Bridge Inverter	Standard	AG-ECONOD-6	Trench Field Stop	2.1 V	3 mA	28 nF	450 A	150 °C	-40 °C	Module	Chassis Mount	1200 V
Infineon Technologies FF450R12ME3BOSA1	Half Bridge	Standard	Module	Trench Field Stop	2.15 V	5 mA	32 nF	600 A	125 °C	-40 °C	Module	Chassis Mount	1200 V	2100 W
Infineon Technologies FF450R12IE4BOSA2	2 Independent	Standard	Module	Trench Field Stop	2.05 V	5 mA	27 nF	450 A			Module	Chassis Mount	1200 V	2550 W
Infineon Technologies FF450R12KT4HOSA1	Half Bridge	Standard	Module	Trench Field Stop	2.15 V	5 mA	28 nF	450 A	150 °C	-40 °C	Module	Chassis Mount	1200 V	2400 W
Infineon Technologies FF450R12KE4EHOSA1	2 Independent	Standard	Module	Trench Field Stop	2.15 V	5 mA	28 nF	520 A			Module	Chassis Mount	1200 V	2400 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 194.34

General part information

IGBT Module Trench Field Stop Half Bridge Inverter 1200 V 450 A Chassis Mount AG-ECONOD-6

Technical documentation and resources

No documents available
