OJ-SS-124HM2

Active

TE Connectivity Potter & Brumfield Relays

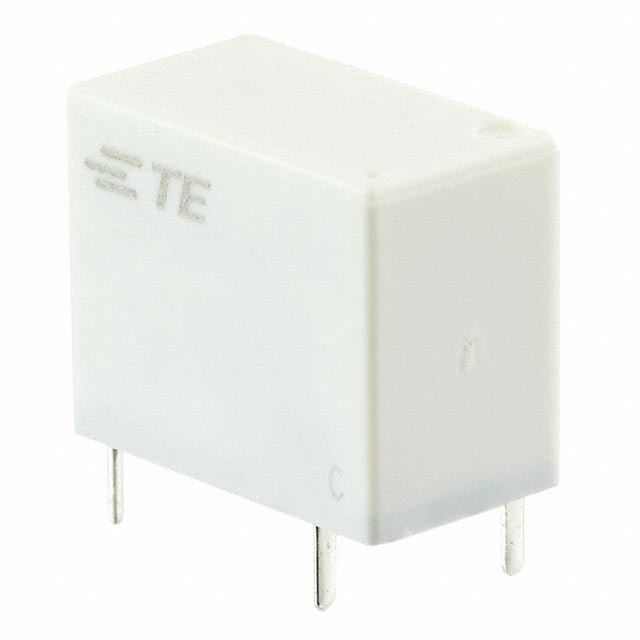

RELAY GEN PURPOSE SPST 10A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OJ-SS-124HM2

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 10A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OJ-SS-124HM2

Approval Agency	TUV, cULus, CQC, VDE
Coil Current	18.8 mA
Coil Insulation	Class F
Coil Resistance	1280 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	10 A
Load - Max Switching	2770 VA, 300 W
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	1.2 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	277 VAC, 30 VDC
Termination Style	PC Pin

OJ-SS Series

Part	Contact Material	Relay Type	Release Time	Must Release Voltage	Operate Time	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Approval Agency	Mounting Type	Contact Form	Switching Voltage	Termination Style	Coil Insulation	Coil Voltage	Coil Resistance	Must Operate Voltage	Coil Current	Coil Type	Seal Rating
TE Connectivity Potter & Brumfield Relays OJ-SS-124HM2	Silver Tin Oxide Indium Oxide (AgSnOInO)	General Purpose	4 ms	1.2 VDC	10 ms	300 W 2770 VA	-30 ░C	85 °C	10 A	CQC cULus TUV VDE	Through Hole	SPST-NO (1 Form A)	30 VDC 277 VAC	PC Pin	Class F	24 VDC	1280 Ohms	16.8 VDC	18.8 mA	Non Latching	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJ-SS-112LM,000	Silver (Ag)	General Purpose	4 ms	0.6 VDC	15 ms	90 W 831 VA	-30 ░C	90 °C	3 A	CQC cULus TUV VDE	Through Hole	SPST-NO (1 Form A)	30 VDC 277 VAC	PC Pin	Class F	12 VDC	720 Ohms	9 VDC	16.7 mA	Non Latching	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJ-SS-112LMHF,000	Silver Cadmium Oxide (AgCdO)	General Purpose	4 ms	1.2 VDC	15 ms	240 W 2216 VA	-40 °C	105 ░C	8 A	CQC cULus TUV VDE	Through Hole	SPST-NO (1 Form A)	30 VDC 277 VAC	PC Pin	Class F	12 VDC	720 Ohms	9 VDC	16.7 mA	Non Latching
TE Connectivity Potter & Brumfield Relays OJ-SS-124HM,000	Silver (Ag)	General Purpose	4 ms	1.2 VDC	10 ms	300 W 2770 VA	-30 ░C	70 °C	10 A	CQC cULus TUV VDE	Through Hole	SPST-NO (1 Form A)	30 VDC 277 VAC	PC Pin	Class F	24 VDC	1280 Ohms	16.8 VDC	18.8 mA	Non Latching	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJ-SS-109LMH2-WG	Silver Tin Oxide (AgSnO)	General Purpose	4 ms	0.9 VDC	15 ms	240 W 2216 VA	-40 °C	105 ░C	8 A	CQC cULus TUV VDE	Through Hole	SPST-NO (1 Form A)	30 VDC 277 VAC	PC Pin	Class F	9 VDC	405 Ohms	6.75 VDC	22.5 mA	Non Latching	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJ-SS-148HM,000	Silver (Ag)	General Purpose	4 ms	2.4 VDC	10 ms	300 W 2770 VA	-30 ░C	70 °C	10 A	CQC cULus TUV VDE	Through Hole	SPST-NO (1 Form A)	30 VDC 277 VAC	PC Pin	Class F	48 VDC	5.12 kOhms	33.6 VDC	9.4 mA	Non Latching	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJ-SS-112HM.000	Silver (Ag)	General Purpose	4 ms	0.6 VDC	10 ms	300 W 2770 VA	-30 ░C	70 °C	10 A	CQC cULus TUV VDE	Through Hole	SPST-NO (1 Form A)	30 VDC 277 VAC	PC Pin	Class F	12 VDC	320 Ohms	8.4 VDC	37.5 mA	Non Latching	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJ-SS-112HM2,000	Silver Tin Oxide Indium Oxide (AgSnOInO)	General Purpose	4 ms	0.6 VDC	10 ms	300 W 2770 VA	-30 ░C	85 °C	10 A	CQC cULus TUV VDE	Through Hole	SPST-NO (1 Form A)	30 VDC 277 VAC	PC Pin	Class F	12 VDC	320 Ohms	8.4 VDC	37.5 mA	Non Latching	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJ-SS-112LMH2-WG	Silver Tin Oxide (AgSnO)	General Purpose	4 ms	1.2 VDC	15 ms	240 W 2216 VA	-40 °C	105 ░C	8 A	CQC cULus TUV VDE	Through Hole	SPST-NO (1 Form A)	30 VDC 277 VAC	PC Pin	Class F	12 VDC	720 Ohms	9 VDC	16.7 mA	Non Latching	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJ-SS-112LM,003		General Purpose	4 ms	1.2 VDC	15 ms	90 W 831 VA	-40 °C	105 ░C	3 A	CQC cULus TUV VDE	Through Hole	SPST-NO (1 Form A)	30 VDC 277 VAC	PC Pin	Class F	12 VDC	720 Ohms	9 VDC	16.7 mA	Non Latching	Sealed - Flux Protection

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.97
		10	$ 1.85
		25	$ 1.64
		50	$ 1.56
		100	$ 1.48
		300	$ 1.31
		500	$ 1.23
		1000	$ 1.15
		5000	$ 1.11

Description

General part information

OJ-SS Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
