QTE-028-01-L-D-DP-A

Active

Samtec Inc.

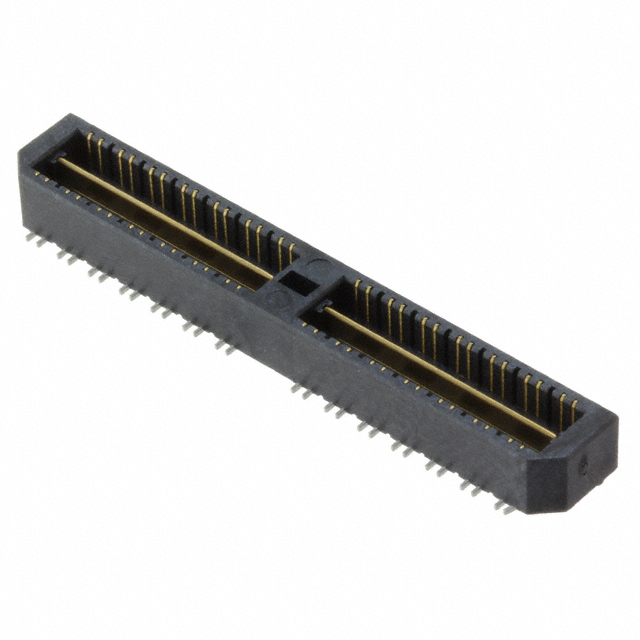

CONN DIFF ARRAY PLG 56P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Q Strip® High-Speed Ground Plane Header, 0.80mm Pitch +1

QTE-028-01-L-D-DP-A

Active

Samtec Inc.

CONN DIFF ARRAY PLG 56P SMD GOLD

Deep-Dive with AI

DocumentsDatasheet Q Strip® High-Speed Ground Plane Header, 0.80mm Pitch +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QTE-028-01-L-D-DP-A

Connector Type	Differential Pair Array, Male
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	56
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QTE-028 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Connector Type	Number of Rows	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Number of Positions	Mated Stacking Heights	Features	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QTE-028-03-F-D-DP-LC	3 Áin	0.076 Ám	Surface Mount	Gold	Differential Pair Array Male	2	10.27 mm	0.404 in	0.8 mm	0.031 in	56	11 mm	Ground Bus (Plane) Locking Clip
Samtec Inc. QTE-028-01-L-D-DP-A	10 Áin	0.25 Ám	Surface Mount	Gold	Differential Pair Array Male	2			0.8 mm	0.031 in	56	5 mm
Samtec Inc. QTE-028-06-L-D-DP-A	10 Áin	0.25 Ám	Surface Mount	Gold	Differential Pair Array Male	2			0.8 mm	0.031 in	56	22 mm		0.837 "	21.26 mm
Samtec Inc. QTE-028-01-C-D-DP-A-RT1-K	50 µin	1.27 µm	Surface Mount	Gold	Differential Pair Array Male	2			0.8 mm	0.031 in	56	5 mm	Board Guide Ground Bus (Plane) Mounting Flange Pick and Place
Samtec Inc. QTE-028-05-F-D-DP-A	3 Áin	0.076 Ám	Surface Mount	Gold	Differential Pair Array Male	2	18.24 mm	0.718 in	0.8 mm	0.031 in	56	19 mm
Samtec Inc. QTE-028-01-F-D-GP-DP-A	3 Áin	0.076 Ám	Surface Mount	Gold	Differential Pair Array Male	2			0.8 mm	0.031 in	56	5 mm	Board Guide Ground Bus (Plane) Guide Post
Samtec Inc. QTE-028-01-H-D-DP-A-GP-K	30 Áin	0.76 Ám	Surface Mount	Gold	Differential Pair Array Male	2			0.8 mm	0.031 in	56	5 mm	Board Guide Ground Bus (Plane) Guide Post Pick and Place
Samtec Inc. QTE-028-01-H-D-DP-A	30 Áin	0.76 Ám	Surface Mount	Gold	Differential Pair Array Male	2			0.8 mm	0.031 in	56	5 mm
Samtec Inc. QTE-028-08-L-D-DP-A	10 Áin	0.25 Ám	Surface Mount	Gold	Differential Pair Array Male	2			0.8 mm	0.031 in	56			1.151 in	29.24 mm
Samtec Inc. QTE-028-04-L-D-DP-A	10 Áin	0.25 Ám	Surface Mount	Gold	Differential Pair Array Male	2	15.24 mm	0.6 in	0.8 mm	0.031 in	56	16 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	48	$ 10.52
		96	$ 10.26
		144	$ 9.59
