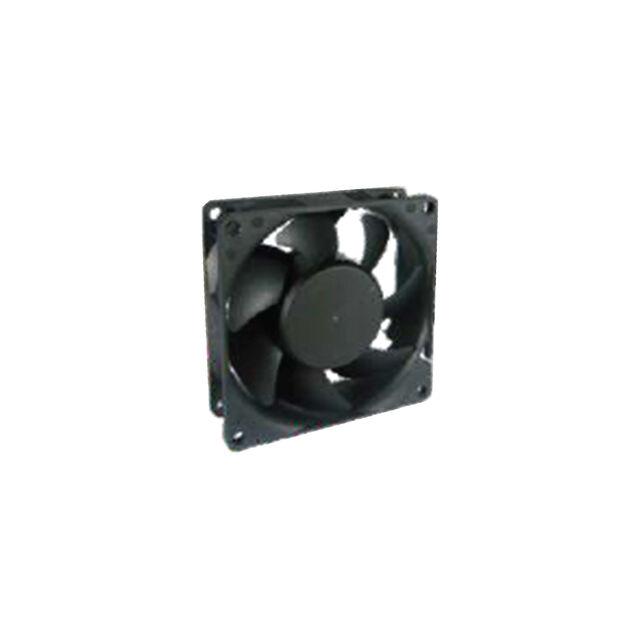

HYW08025012BM-12

Active

YS TECH USA

FAN AXIAL 80X25.4MM 12VDC WIRE

Search across all available documentation for this part.

Active

YS TECH USA

FAN AXIAL 80X25.4MM 12VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HYW08025012BM-12	HYW08025012 Series

Air Flow	55.6 CFM	55.6 - 80 CFM
Air Flow	1.56 mł/min	1.56 - 2.24 mł/min
Bearing Type	Ball	Ball
Current Rating (Amps)	0.26 A	0.26 - 600 mA
Fan Type	Tubeaxial	Tubeaxial
Lifetime @ Temp.	80000 Hrs	65000 - 80000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	-	53.5 dB
Power (Watts)	3.12 W	3.12 - 7.2 W
RPM	4400 RPM	4400 - 6200 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	0.354 in H2O	0.354 - 0.7 in H2O
Static Pressure	88.2 Pa	88.2 - 174.4 Pa
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.2 VDC	13.2 VDC
Voltage Range [Min]	7 V	7 V
Width [y]	25.4 mm	25.4 mm

FAN AXIAL 80X25.4MM 12VDC WIRE

Part	RPM	Noise	Termination	Static Pressure	Static Pressure	Width [y]	Power (Watts)	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Bearing Type	Voltage - Rated	Current Rating (Amps)	Material - Blade
YS TECH USA HYW08025012BSS-12	6200 RPM	53.5 dB	2 Wire Leads	0.7 in H2O	174.4 Pa	25.4 mm	7.2 W	65000 Hrs	13.2 VDC	7 V	80 CFM	2.24 mł/min	80 mm	80 mm	Tubeaxial	Ball	12 VDC	600 mA	Polybutylene Terephthalate (PBT)
YS TECH USA HYW08025012BM-12	4400 RPM		2 Wire Leads	0.354 in H2O	88.2 Pa	25.4 mm	3.12 W	80000 Hrs	13.2 VDC	7 V	55.6 CFM	1.56 mł/min	80 mm	80 mm	Tubeaxial	Ball	12 VDC	0.26 A	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 55.6 CFM (1.56m³/min) 2 Wire Leads
