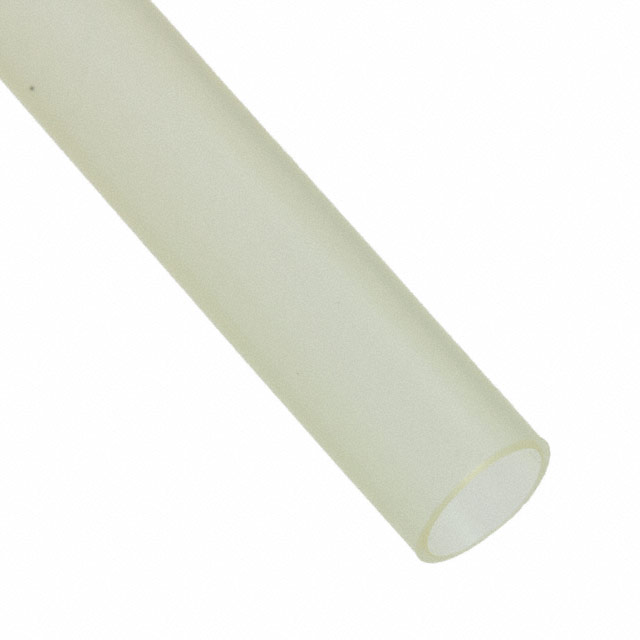

RBK-VWS-125-NR2-X-25MM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.315" X 0.082' CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RBK-VWS-125-NR2-X-25MM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.315" X 0.082' CLEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RBK-VWS-125-NR2-X-25MM

Color	Clear
Features	Adhesive Lined, Fluid Resistant, Abrasion and Cut Resistant, Strain Resistant
Inner Diameter - Recovered	0.065 in
Inner Diameter - Recovered	1.65 mm
Inner Diameter - Supplied [diameter]	8 mm
Inner Diameter - Supplied [diameter]	0.315 in
Length	0.98 in
Length	25 mm
Length	0.082 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	1.78 mm
Recovered Wall Thickness	0.07 "
Shelf Life	36 Months
Shrink Temperature	135 C
Shrinkage Ratio	4 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C
Type	Tubing, Semi Rigid

RBK-VWS Series

Part	Color	Inner Diameter - Recovered	Inner Diameter - Recovered	Type	Features	Recovered Wall Thickness	Recovered Wall Thickness	Length	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Shelf Life	Shrink Temperature	Shrinkage Ratio	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness
TE Connectivity Raychem Cable Protection RBK-VWS-125-NR2-X-25MM	Clear	0.065 in	1.65 mm	Tubing Semi Rigid	Abrasion and Cut Resistant Adhesive Lined Fluid Resistant Strain Resistant	1.78 mm	0.07 "	0.98 in	25 mm	0.082 ft	8 mm	0.315 in	125 °C	-40 °C	36 Months	135 C	4 to 1	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated
TE Connectivity Raychem Cable Protection RBK-VWS-125-NR1-X-40MM	Clear			Tubing Semi Rigid	Abrasion and Cut Resistant Adhesive Lined Fluid Resistant Strain Resistant	1.4 mm	0.055 in					5.72 mm	125 °C	-40 °C	36 Months	135 C	4 to 1	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	1.27 mm	0.05 in	1.57 "	0.131 '	40 mm	0.225 in
TE Connectivity Raychem Cable Protection RBK-VWS-125-NR3-X-STK
TE Connectivity Raychem Cable Protection RBK-VWS-125-NR1-X-STK	Clear			Tubing Semi Rigid	Abrasion and Cut Resistant Adhesive Lined Fluid Resistant Strain Resistant	1.42 mm	0.056 "					5.7 mm	125 °C	-40 °C	36 Months	135 C	4 to 1	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	1.27 mm	0.05 in		4 ft	1.22 m	0.224 in
TE Connectivity Raychem Cable Protection RBK-VWS-125-NR3-X-95MM	Clear	0.094 in	2.4 mm	Tubing Semi Rigid	Abrasion and Cut Resistant Adhesive Lined Fluid Resistant Strain Resistant	0.084 in		3.74 in	95 mm	0.312 ft		10.8 mm	125 °C	-40 °C	36 Months	135 C	4 to 1	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated						0.425 in	2.13 mm
TE Connectivity Raychem Cable Protection RBK-VWS-125-NR4-X-75MM	Clear	0.175 in	4.45 mm	Tubing Semi Rigid	Abrasion and Cut Resistant Adhesive Lined Fluid Resistant Strain Resistant	2.41 mm	0.095 in	2.95 in	75 mm	0.246 ft		17.81 mm	125 °C	-40 °C	36 Months	135 C	4 to 1	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated						0.701 in
TE Connectivity Raychem Cable Protection RBK-VWS-125-NR2-X-50MM	Clear	0.065 in	1.65 mm	Tubing Semi Rigid	Abrasion and Cut Resistant Adhesive Lined Fluid Resistant Strain Resistant	1.78 mm	0.07 "	1.97 "	50 mm	0.164 '	8 mm	0.315 in	125 °C	-40 °C	36 Months	135 C	4 to 1	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated
TE Connectivity Raychem Cable Protection RBK-VWS-125-NR3-X-65MM	Clear	0.094 in	2.4 mm	Tubing Semi Rigid	Abrasion and Cut Resistant Adhesive Lined Fluid Resistant Strain Resistant	0.084 in						10.8 mm	125 °C	-40 °C	36 Months	135 C	4 to 1	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated			2.56 "	0.213 ft	65 mm	0.425 in	2.13 mm
TE Connectivity Raychem Cable Protection RBK-VWS-125-NR2-X-STK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60000	$ 0.06

Description

General part information

RBK-VWS Series

Heat Shrink Tubing, Semi Rigid 0.315" (8.00mm) 4 to 1 Clear 0.082' (25.00mm, 0.98")
