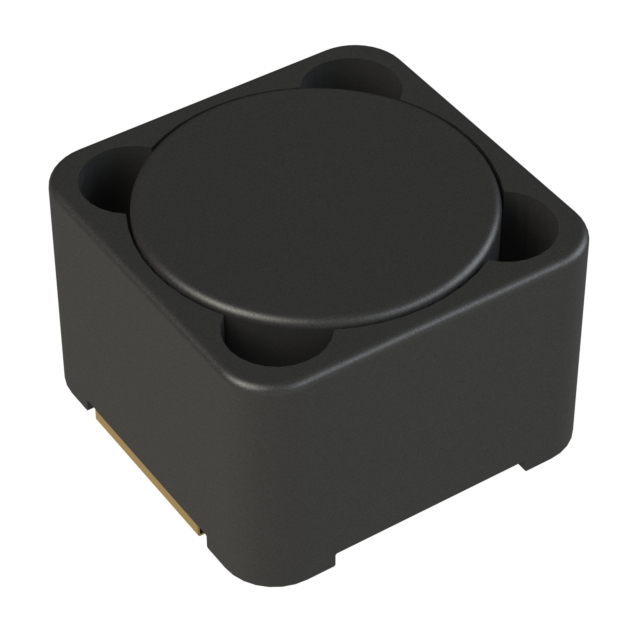

MGDQ6-00006-P
ActiveTE Connectivity Passive Product
FIXED IND 4.7UH 16 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGDQ6-00006-P
ActiveTE Connectivity Passive Product
FIXED IND 4.7UH 16 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGDQ6-00006-P |
|---|---|
| Current - Saturation (Isat) | 13.5 A |
| DC Resistance (DCR) | 16 mOhm |
| Height - Seated (Max) [Max] [z] | 8 mm |
| Height - Seated (Max) [Max] [z] | 0.315 in |
| Inductance | 4.7 ÁH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.492 in |
| Size / Dimension [x] | 12.5 mm |
| Size / Dimension [y] | 0.492 " |
| Size / Dimension [y] | 12.5 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.07 | |
| 10 | $ 1.76 | |||
| 25 | $ 1.62 | |||
| 50 | $ 1.45 | |||
| 100 | $ 1.22 | |||
Description
General part information
MGDQ6 Series
4.7 µH Unshielded Inductor 16mOhm Nonstandard
