YE-2RQ27-A4

Active

Honeywell Sensing and Productivity Solutions

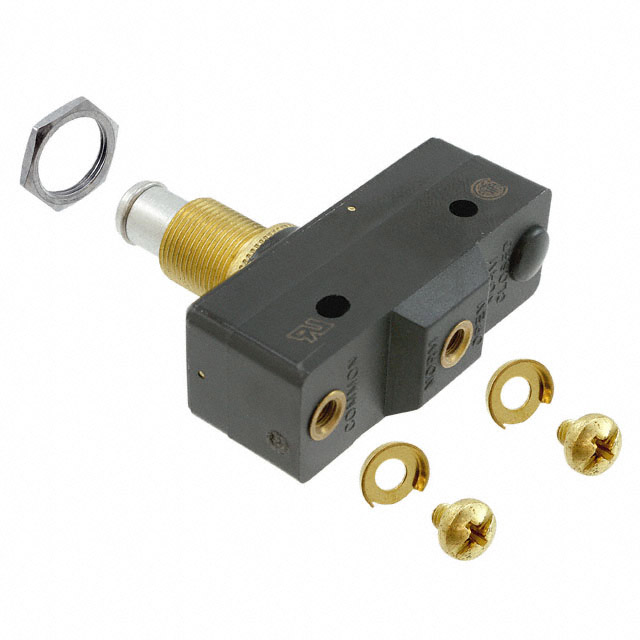

SWITCH SNAP ACT SPST-NO 25A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NO 25A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACT SPST-NO 25A 125V

Part	Overtravel	Overtravel	Switch Function	Circuit	Voltage Rating - AC	Operating Force [Min]	Operating Force [Max]	Differential Travel	Differential Travel	Features	Termination Style	Pretravel	Pretravel	Actuator Type	Release Force	Mechanical Life	Current Rating (Amps)	Operating Position	Operating Position	Operating Temperature [Max]	Operating Temperature [Min]
Honeywell Sensing and Productivity Solutions YE-2RQ27-A4	0.094 in	2.4 mm	Off-Mom	SPST-NO	125 V	397 gf	624 gf	0.007 in	0.18 mm	Steel Plunger	Screw Terminal	0.05 in	1.27 mm	Overtravel Plunger	283 gf	20000000 Cycles	25 A	0.859 in	21.8 mm	121 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.08

General part information

Switch SPST-NO Panel Mount
