887-084-559-204

Active

EDAC Inc.

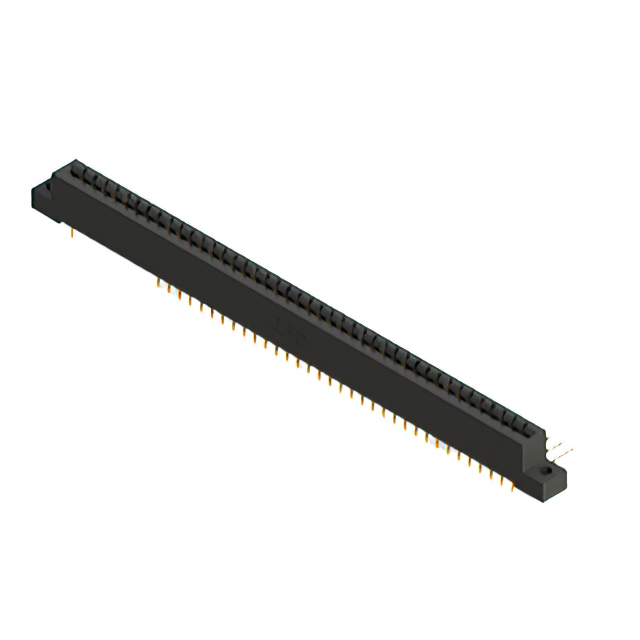

CARD EDGE CONNECTOR, 84 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-084-559-204

Active

EDAC Inc.

CARD EDGE CONNECTOR, 84 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-084-559-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	84
Number of Positions/Bay/Row [custom]	42
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

887-084 Series

...

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Read Out	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Contact Material	Card Type	Termination	Termination Rows	Number of Positions	Color	Number of Rows	Pitch [x]	Pitch [x]	Features	Flange Feature	Flange Feature
EDAC Inc. 887-084-521-804	Through Hole	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	Dual	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Gold	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Female	Copper Alloy	Non Specified - Dual Edge	Solder	2	84	Black	2	0.156 in	3.96 mm
EDAC Inc. 887-084-558-808	Through Hole Right Angle	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	Dual	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Gold		4-40 Threaded Insert Top Mount Opening		Female	Copper Alloy	Non Specified - Dual Edge	Solder	2	84	Black	2	0.156 in	3.96 mm
EDAC Inc. 887-084-560-804	Board Edge Straddle Mount	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	Dual	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Gold	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Female	Copper Alloy	Non Specified - Dual Edge	Solder	2	84	Black	2	0.156 in	3.96 mm	Card Extender
EDAC Inc. 887-084-555-207	Board Edge Straddle Mount	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	Dual	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Gold		Flush Mount M3 Threaded Insert Top Opening		Female	Copper Alloy	Non Specified - Dual Edge	Solder	2	84	Black	2	0.156 in	3.96 mm	Card Extender
EDAC Inc. 887-084-560-802	Board Edge Straddle Mount	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	Dual	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Gold				Female	Copper Alloy	Non Specified - Dual Edge	Solder	2	84	Black	2	0.156 in	3.96 mm	Card Extender	3.25 mm	0.128 in
EDAC Inc. 887-084-524-812	Through Hole	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	Dual	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Gold		Side Mount Opening Unthreaded		Female	Copper Alloy	Non Specified - Dual Edge	Solder	2	84	Black	2	0.156 in	3.96 mm		3.25 mm	0.128 in
EDAC Inc. 887-084-540-207	Through Hole	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	Dual	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Gold		Flush Mount M3 Threaded Insert Top Opening		Female	Copper Alloy	Non Specified - Dual Edge	Wire Wrap	2	84	Black	2	0.156 in	3.96 mm
EDAC Inc. 887-084-559-204	Through Hole Right Angle	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	Dual	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Gold	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Female	Copper Alloy	Non Specified - Dual Edge	Solder	2	84	Black	2	0.156 in	3.96 mm
EDAC Inc. 887-084-555-204	Board Edge Straddle Mount	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	Dual	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Gold	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Female	Copper Alloy	Non Specified - Dual Edge	Solder	2	84	Black	2	0.156 in	3.96 mm	Card Extender
EDAC Inc. 887-084-559-207	Through Hole Right Angle	125 °C	-40 °C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	42	Dual	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Gold		Flush Mount M3 Threaded Insert Top Opening		Female	Copper Alloy	Non Specified - Dual Edge	Solder	2	84	Black	2	0.156 in	3.96 mm
