M3478-SS
ActiveRAF Electronic Hardware
SCREWS & FASTENERS PLAIN THUMB SCREW M5X0.8 9MM
M3478-SS
ActiveRAF Electronic Hardware
SCREWS & FASTENERS PLAIN THUMB SCREW M5X0.8 9MM
Description
General part information
M3478 Series

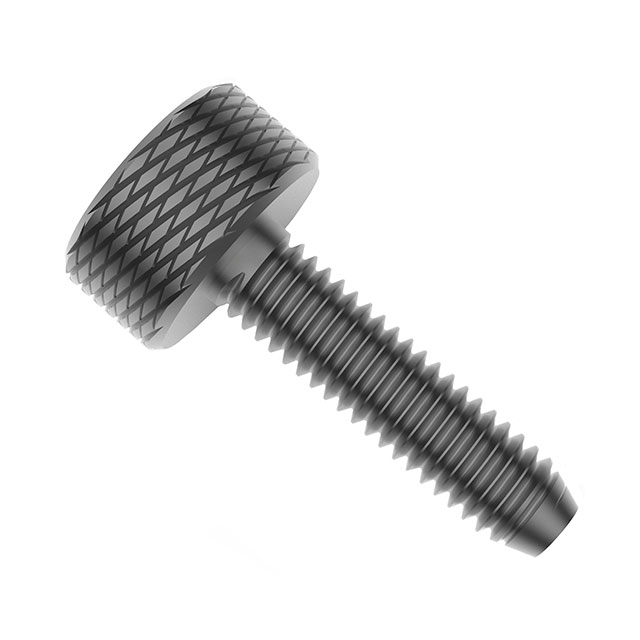

The M3478-SS is a M5 x 9mm Plain Thumb Screw made of stainless steel.
Technical Specifications
Parameters and characteristics for this part
| Specification | M3478-SS |
|---|---|
| Head Diameter | 0.433 in |
| Head Height | 0.197 in |
| Length - Below Head | 0.354 in |
| Length - Overall | 0.551 in |
| Material | Stainless Steel |
| Screw Head Type | Knob |
| Thread Diameter | 5 mm |
| Thread Pitch | 0.8 mm |
| Type | Thumb Screw |
