794618-8
ObsoleteTE Connectivity AMP Connectors

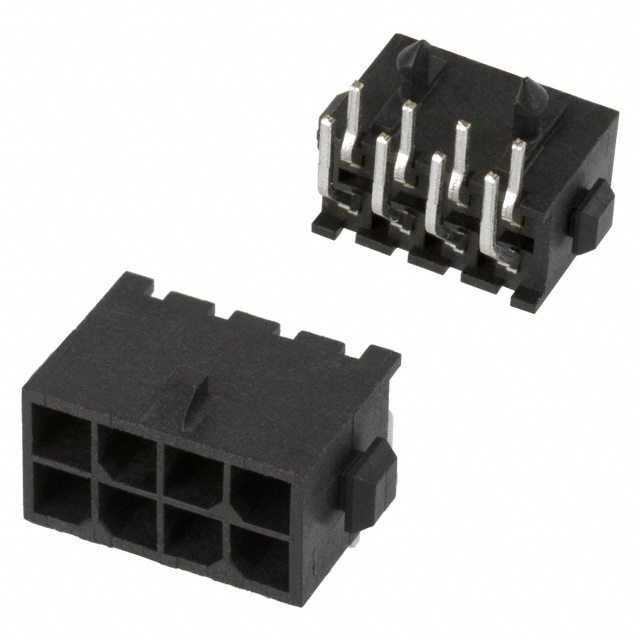

CONN HEADER R/A 8POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794618-8
ObsoleteTE Connectivity AMP Connectors
CONN HEADER R/A 8POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794618-8 | 794618 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Tin-Lead | Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 8 | 2 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794618 Series
CONN HEADER R/A 4POS 3MM
| Part | Voltage Rating | Contact Material | Material Flammability Rating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Number of Rows | Contact Type | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Style | Insulation Color | Mounting Type | Number of Positions | Connector Type | Insulation Height | Insulation Height | Shrouding | Current Rating (Amps) | Insulation Material | Number of Positions Loaded | Contact Shape | Fastening Type | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 3-794618-4 | 250 VDC | Brass | UL94 V-0 | Tin | 2.54 µm | 100 µin | General Purpose | 2 | Male Pin | Solder | 2.54 çm | 100 çin | 3 mm | 0.118 in | Board to Cable/Wire | Black | Through Hole, Right Angle | 4 | Header | 7.37 mm | 0.29 in | Shrouded - 4 Wall | Varies by Wire Gauge | Nylon, Polyamide (PA) | All | Square | Locking Ramp | 0.118 in | 3 mm | -40 °C | 105 ░C | ||
TE Connectivity AMP Connectors 4-794618-0 | 250 VDC | Brass | UL94 V-0 | Tin | 2.54 µm | 100 µin | General Purpose | 2 | Male Pin | Solder | 2.54 çm | 100 çin | 3 mm | 0.118 in | Board to Cable/Wire | Black | Through Hole, Right Angle | 10 | Header | 7.37 mm | 0.29 in | Shrouded - 4 Wall | Varies by Wire Gauge | Nylon, Polyamide (PA) | All | Square | Locking Ramp | 0.118 in | 3 mm | -40 °C | 105 ░C | ||
TE Connectivity AMP Connectors 794618-6 | 250 VDC | Brass | UL94 V-0 | Tin-Lead | 2.54 µm | 100 µin | General Purpose | 2 | Male Pin | Solder | 2.54 çm | 100 çin | 3 mm | 0.118 in | Board to Cable/Wire | Black | Through Hole, Right Angle | 6 | Header | 7.37 mm | 0.29 in | Shrouded - 4 Wall | Varies by Wire Gauge | Nylon, Polyamide (PA) | All | Square | Locking Ramp | 0.118 in | 3 mm | -40 °C | 105 ░C | Tin-Lead | |
TE Connectivity AMP Connectors 2-794618-4 | 250 VDC | Brass | UL94 V-0 | Tin-Lead | 2.54 µm | 100 µin | General Purpose | 2 | Male Pin | Solder | 2.54 çm | 100 çin | 3 mm | 0.118 in | Board to Cable/Wire | Black | Through Hole, Right Angle | 24 | Header | 7.37 mm | 0.29 in | Shrouded - 4 Wall | Varies by Wire Gauge | Nylon, Polyamide (PA) | All | Square | Locking Ramp | 0.118 in | 3 mm | -40 °C | 105 ░C | Tin-Lead | |
TE Connectivity AMP Connectors 4-794618-6 | 250 VDC | Brass | UL94 V-0 | Tin | 2.54 µm | 100 µin | General Purpose | 2 | Male Pin | Solder | 2.54 çm | 100 çin | 3 mm | 0.118 in | Board to Cable/Wire | Black | Through Hole, Right Angle | Header | 7.37 mm | 0.29 in | Shrouded - 4 Wall | Varies by Wire Gauge | Nylon, Polyamide (PA) | All | Square | Locking Ramp | 0.118 in | 3 mm | -40 °C | 105 ░C | 16 | ||
TE Connectivity AMP Connectors 794618-8 | 250 VDC | Brass | UL94 V-0 | Tin-Lead | 2.54 µm | 100 µin | General Purpose | 2 | Male Pin | Solder | 2.54 çm | 100 çin | 3 mm | 0.118 in | Board to Cable/Wire | Black | Through Hole, Right Angle | 8 | Header | 7.37 mm | 0.29 in | Shrouded - 4 Wall | Varies by Wire Gauge | Nylon, Polyamide (PA) | All | Square | Locking Ramp | 0.118 in | 3 mm | -40 °C | 105 ░C | Tin-Lead | |
TE Connectivity AMP Connectors 794618-2 | 250 VDC | Brass | UL94 V-0 | Tin-Lead | 2.54 µm | 100 µin | General Purpose | 2 | Male Pin | Solder | 2.54 çm | 100 çin | 3 mm | 0.118 in | Board to Cable/Wire | Black | Through Hole, Right Angle | 2 | Header | 7.37 mm | 0.29 in | Shrouded - 4 Wall | Varies by Wire Gauge | Nylon, Polyamide (PA) | All | Square | Locking Ramp | -40 °C | 105 ░C | Tin-Lead | |||
TE Connectivity AMP Connectors 3-794618-6 | 250 VDC | Brass | UL94 V-0 | Tin | 2.54 µm | 100 µin | General Purpose | 2 | Male Pin | Solder | 2.54 çm | 100 çin | 3 mm | 0.118 in | Board to Cable/Wire | Black | Through Hole, Right Angle | 6 | Header | 7.37 mm | 0.29 in | Shrouded - 4 Wall | Varies by Wire Gauge | Nylon, Polyamide (PA) | All | Square | Locking Ramp | 0.118 in | 3 mm | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794618 Series
Connector Header Through Hole, Right Angle 8 position 0.118" (3.00mm)
