UL PC 125/100 LT

Active

FIBOX Enclosures

BOX PLASTIC 5.1"L X 5.1"W

Search across all available documentation for this part.

Active

FIBOX Enclosures

BOX PLASTIC 5.1"L X 5.1"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.96

General part information

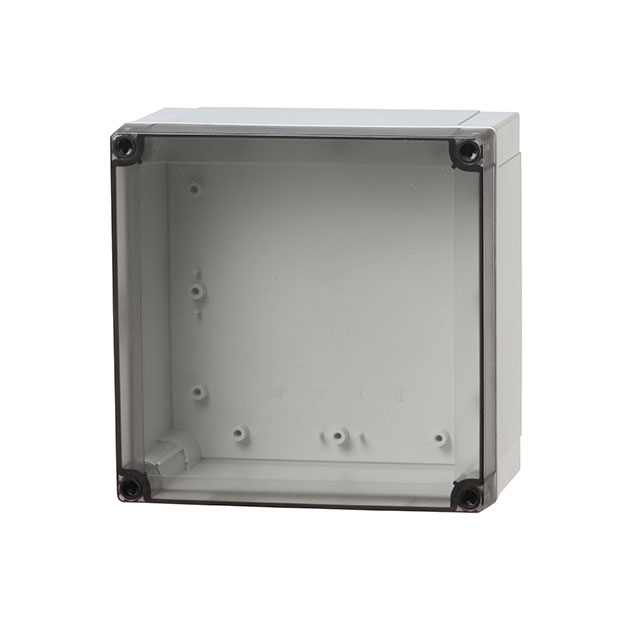

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 5.100" L x 5.100" W (129.54mm x 129.54mm) X 3.900" (99.06mm)

Technical documentation and resources

Specification	UL PC 125/100 LT	UL PC 125 Series

Area (L x W)	26 in²	26 in²
Area (L x W)	168 cm²	168 cm²
Color	Gray, Clear Cover/Door	Gray, Clear Cover/Door, Light Gray
Container Type	Box	Box
Design	Cover Included	Cover Included
Height [z]	99.06 mm	35.56 - 124.46 mm
Height [z]	3.9 in	1.4 - 124.46 in
Material	Plastic, Polycarbonate	Plastic, Polycarbonate
Material Flammability Rating	UL 746C 5	UL 746C 5
Ratings	IP67, IP66, UL 508	IP67, IP66, UL 508
Size / Dimension [x]	129.54 mm	129.54 mm
Size / Dimension [x]	5.1 "	5.1 "
Size / Dimension [y]	129.54 mm	129.54 mm
Size / Dimension [y]	5.1 "	5.1 "

Part	Material Flammability Rating	Ratings	Material	Area (L x W)	Area (L x W)	Design	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Color
FIBOX Enclosures UL PC 125/100 LT	UL 746C 5	IP66, IP67, UL 508	Plastic, Polycarbonate	26 in²	168 cm²	Cover Included	99.06 mm	3.9 in	129.54 mm	129.54 mm	5.1 "	5.1 "	Box	Clear Cover/Door, Gray
FIBOX Enclosures UL PC 125/125 HT	UL 746C 5	IP66, IP67, UL 508	Plastic, Polycarbonate	26 in²	168 cm²	Cover Included	124.46 mm	124.46 mm	129.54 mm	129.54 mm	5.1 "	5.1 "	Box	Clear Cover/Door, Gray
FIBOX Enclosures UL PC 125/35 LG	UL 746C 5	IP66, IP67, UL 508	Plastic, Polycarbonate	26 in²	168 cm²	Cover Included	35.56 mm	1.4 in	129.54 mm	129.54 mm	5.1 "	5.1 "	Box	Light Gray
