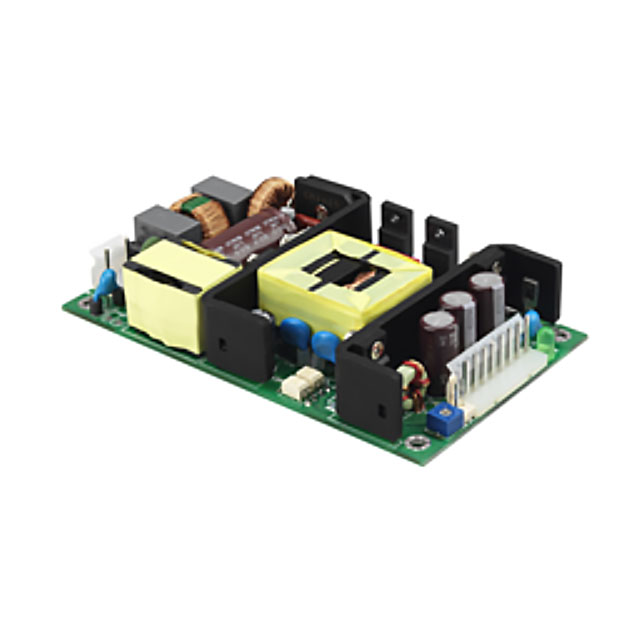

CFM100M360

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 36V 101W

Search across all available documentation for this part.

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 36V 101W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFM100M360	CFM100 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Current - Output 1	2.8 A	2.1 - 2.8 A
Efficiency	91 %	91 - 92 %
Features	Universal Input, Remote Sense, Adjustable Output, PFC	Universal Input, Remote Sense, Adjustable Output, PFC
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	101 W	101 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [z]	26.7 mm	26.7 mm
Size / Dimension [z]	1.05 "	1.05 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	5.656 kV	5.656 kV
Voltage - Output 1	36 V	36 - 48 V

AC/DC CONVERTER 36V 101W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Power (Watts)	Features	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Mounting Type	Type	Voltage - Output 1	Current - Output 1	Voltage - Isolation	Number of Outputs
Cincon Electronics Co. LTD CFM100M360	-20 °C	70 °C	5 in	26.7 mm	76.2 mm	3 "	127 mm	1.05 "	ITE (Commercial), Medical	101 W	Adjustable Output, PFC, Remote Sense, Universal Input	CE, cURus, TUV	90 VAC	264 VAC	91 %	Chassis Mount	Open Frame	36 V	2.8 A	5.656 kV	1
Cincon Electronics Co. LTD CFM100M480	-20 °C	70 °C	5 in	26.7 mm	76.2 mm	3 "	127 mm	1.05 "	ITE (Commercial), Medical	101 W	Adjustable Output, PFC, Remote Sense, Universal Input	CE, cURus, TUV	90 VAC	264 VAC	92 %	Chassis Mount	Open Frame	48 V	2.1 A	5.656 kV	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 36V 90 ~ 264 VAC Input
